STOPTECH 127.66035R Part Description
Manufacturer
Product Description

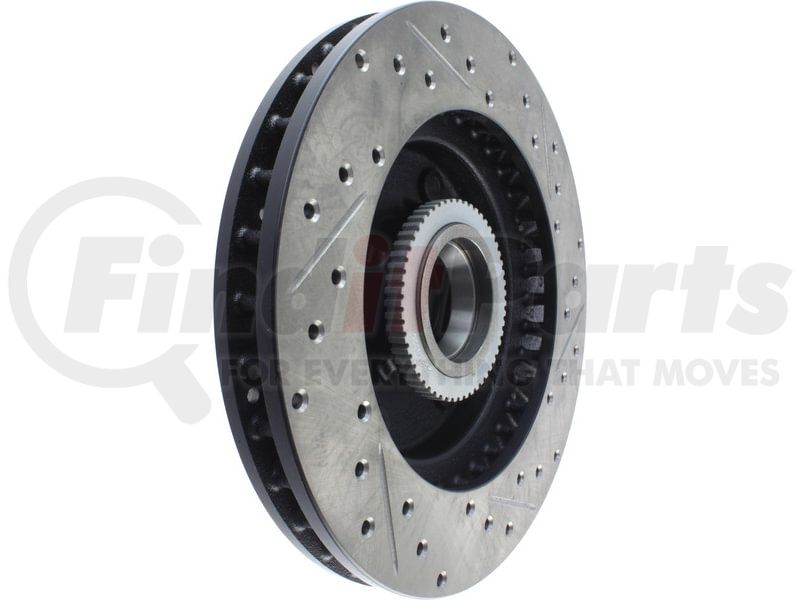

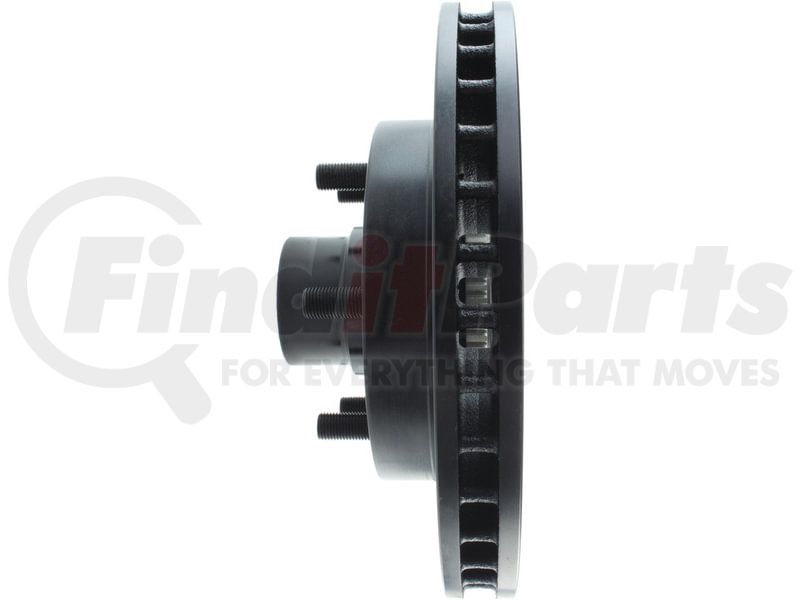

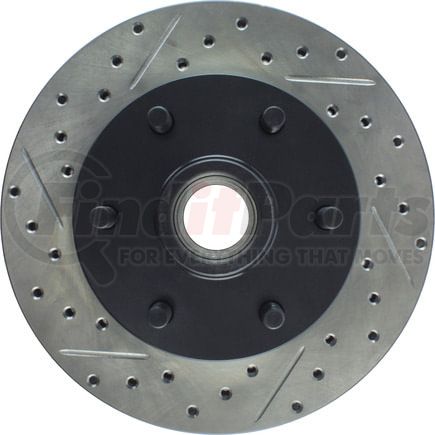

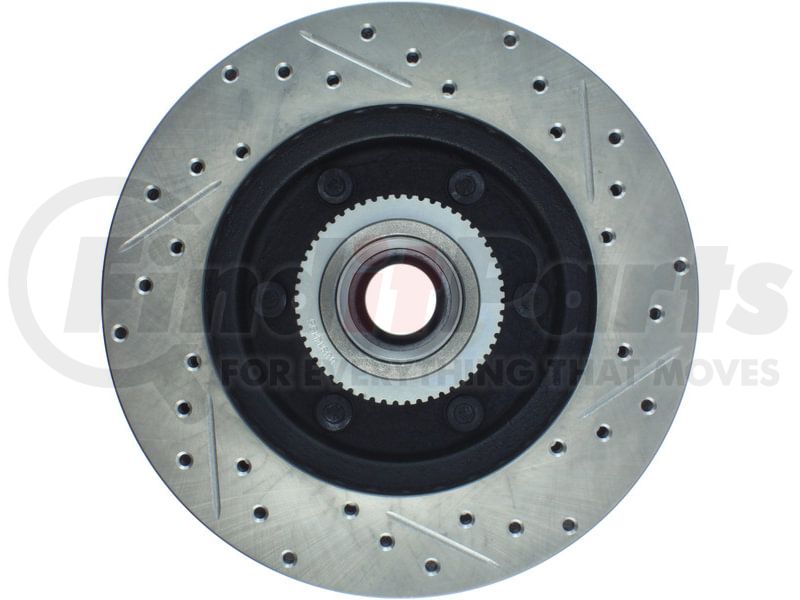

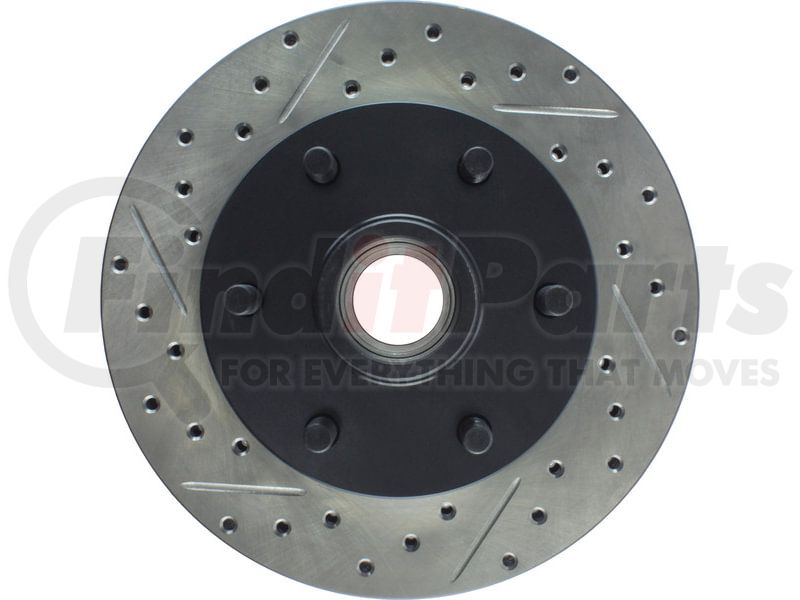

Sport Drilled & Slotted Brake Rotor, Front Right
Application Summary
1994 - 1998 Chevrolet C2500, 1996 - 2002 Chevrolet Express 2500, 1994 - 1998 GMC C2500, 1996 - 2002 GMC Savana 2500
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Drilled & Slotted for increased bite; improved looks and better performance
Sport Drilled Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor; Stoptech Drilled/Slotted Rotor
STOPTECH 127.66035R Specifications
Product Attributes
| Discard Thickness | 1.215 IN |
| Discard Thickness | 30.860 MM |
| Nominal Thickness | 1.287 IN |
| Nominal Thickness | 32.700 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.550 IN |
| Stud Thread Diameter | 14.000 MM |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| Height | 4.500 IN |
| Height | 114.300 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 3.134 IN |
| Center Hole Diameter | 79.60 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Circle Diameter | 139.70 MM |
| Stud/Lug Hole Quantity | 6 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91005 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 2 |
| Outer Bearing # [cntrc] | 410.91003 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 12.500 KG |
| Weight [cntrc] | 27.500 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91005 |
| Inner Seal | 417.660 |
| Misc Holes | 2 |
| Outer Bearing | 410.91003 |
| Vane Style | Straight |
| Weight | 12.500 KG |
| Weight | 27.500 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890161950 |
STOPTECH 127.66035R Fits Vehicles
- GMC Savana 2500 (1996-2002)
- GMC C2500 (1996-1998)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet C2500 (1995-1998)
