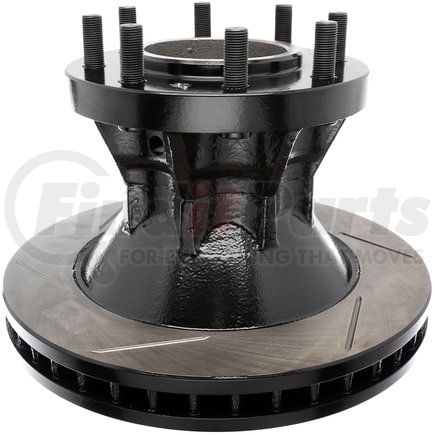

StopTech 126.66001SR - Sport Slotted Brake Rotor, Front Right
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description
Sport Slotted Brake Rotor, Front Right
Application Summary
1975 - 1986 Chevrolet C30, 1974 - 1974 Chevrolet C30 Pickup, 1975 - 1992 Chevrolet G30, 1974 - 1974 Chevrolet G30 Van, 1975 - 1996 Chevrolet P30, 1974 - 1974 Chevrolet P30 Van, 1987 - 1988 Chevrolet R30, 1989 - 1991 Chevrolet R3500, 1975 - 1978 GMC C35, 1974 - 1974 GMC C35/C3500 Pickup, 1979 - 1986 GMC C3500, 1975 - 1978 GMC G35, 1974 - 1974 GMC G35/G3500 Van, 1979 - 1992 GMC G3500, 1975 - 1978 GMC P35, 1974 - 1974 GMC P35/P3500 Van, 1979 - 1996 GMC P3500, 1987 - 1991 GMC R3500, 1999 - 2005 Workhorse P32, 1999 - 2005 Workhorse P42
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Slotted for increased bite; improved looks and better performance
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
Product Attributes
| Discard Thickness | 1.465 IN |
| Discard Thickness | 37.210 MM |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 38.990 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.563 IN |
| Stud Thread Diameter | 14.300 MM |
| Outside Diameter | 12.508 IN |
| Outside Diameter | 317.700 MM |
| Height | 7.677 IN |
| Height | 195.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Center Hole Diameter | 4.551 IN |
| Center Hole Diameter | 115.60 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.10 MM |
| Stud/Lug Hole Quantity | 8 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Hub Hole/Whl Reg [cntrc] | 115.6 MM |
| Inner Bearing # [cntrc] | 410.91035 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 8 |
| Outer Bearing # [cntrc] | 415.66 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 27.050 KG |
| Weight [cntrc] | 59.500 LB |
| Disc Mounting | Hub & Rotor |
| Hub Hole Diameter | 115.6 MM |
| Inner Bearing | 410.91035 |
| Inner Seal | 417.660 |
| Misc Holes | 8 |
| Outer Bearing | 415.66 |
| Vane Style | Straight |
| Weight | 27.050 KG |
| Weight | 59.500 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890743026 |
Fits Vehicles
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- GMC P35/P3500 Van (1974)
- GMC G35/G3500 Van (1974)
- GMC C35/C3500 Pickup (1974)
- Chevrolet P30 Van (1974)
- Chevrolet G30 Van (1974)
- Chevrolet C30 Pickup (1974)
- GMC R3500 (1987-1991)
- GMC P3500 (1979-1996)
- GMC P35 (1975-1978)
- GMC G3500 (1979-1992)
- GMC G35 (1975-1978)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet P30 (1975-1996)
- Chevrolet G30 (1975-1992)
- Chevrolet C30 (1975-1986)
