CENTRIC 141.44314 Part Description
Manufacturer
Product Description

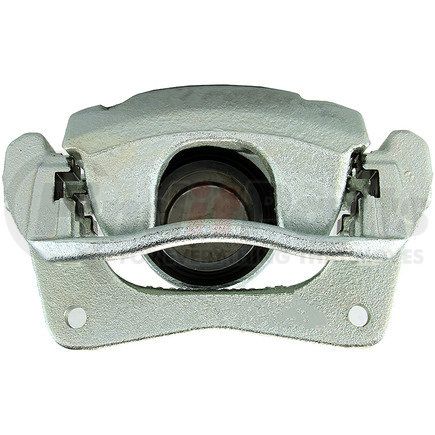

Centric Semi-Loaded Brake Caliper
Application Summary
Toyota C-HR 2022-2018
Features & Benefits
- Remanufactured to meet the most exacting standards for reliable performance. 100% pressure tested & inspected to ensure proper operation & fitment. Treated with anti-corrosion finish. Comes without brake pads. Includes hardware and brackets
Centric Calipers; Centric Parts loaded caliper; Centric; Centric Parts; CentricParts; Semi-Loaded Caliper; Centric Semi-Loaded Calipers
CENTRIC 141.44314 Specifications
Product Attributes
| Pad Wear Sensor Included | No |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Hardware Included | No |
| Casting Number | D1; D4; L677212; 9072; 9087; 9106; 60; D3; |
| Pads Included | No |
| Disc Brake Caliper Casting Material | Cast Iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Friction Materials Standards Institute Pad Number | 10x.60250 |
| Bleeder Thread Diameter | 8.000 MM |
| Piston Diameter | 2.362 IN |
| Inlet Fitting Type | Banjo |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Inlet Thread Size | M10-1.00 |
| Bleeder Screw Thread Size | M8-1.25 |
| Axle Leading/trailing [cntrc] | Leading |
| Bare Bracket Weight [cntrc] Lbs | 3.20 |
| Bare Caliper Body Weight [cntrc] Lbs | 7.30 |
| Bleeder Install Thread Count [cntrc] In | 3.5 |
| Bleeder Screw Included [cntrc] | Yes |
| Body Air Gap [cntrc] | 68.0mm |
| Bracket # [cntrc] | 743.44314 |
| Bracket Air Gap [cntrc] | 32.0mm |
| Bracket Required [cntrc] | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.44094 |
| Caliper Manufacturer [cntrc] | Nissinbo |
| Car Position [cntrc] | Left Front |
| Finish [cntrc] | Rust Preventative |
| Hardware Kit# [cntrc] | 117.44106 |
| Mount Spread - Ctr2ctr [cntrc] | 140.0mm |
| Mount Thread Size [cntrc] Mm | M12-1.25 |
| New Or Ramanufactured [cntrc] | Remanufactured |
| Published Bore Size [cntrc] | 60 |
| Root Core# [cntrc] | 44314 |
| Rust Preventative Coating [cntrc] | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8412909085 |
| NAFTA Preference Criterion Code | B |
| Original Equipment Manufacturer | CNWV |
| OEM's Part Number | 47750F4020 |
| UPC | 00889590330755 |
CENTRIC 141.44314 Fits Vehicles
- Toyota C-HR (2018-2022)
