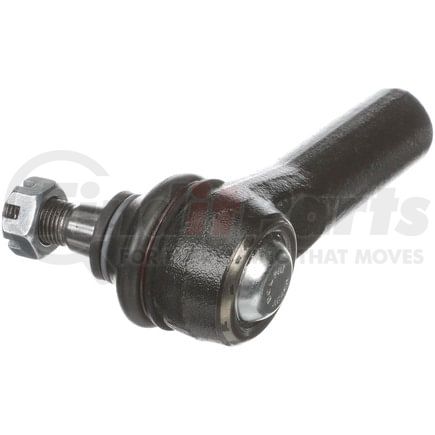

DELPHI TA5067 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5067 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 122.50 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 77.70 MM |
| Housing Material | Steel |
| Tube Diameter | 0.984 IN |
| Tube Diameter | 25.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.25 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.937 IN |
| Length - Stud Center to End | 100.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604282830 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5067 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5195 |
| DORMAN | TO86215, T3631, TO86215XL, T3631XL |
| Ford | 5L843289AALR, 5L8Z 3A130-AA, 8L8Z 3A130-A, MEOE171, MEOE80, YL8C3289GA |
| MAS Industries | TO86215, 534-691 |
| MEVOTECH | MES3631, TXES3631 |
| Mazda | EC01-32-280A |
| N/A | ES3631, MES3631, T3631, GES3631, TXES3631, T3631XL, TO86215XL, 612.65089 |
| TRW | JTE7607 |
DELPHI TA5067 Fits Vehicles
- Mercury Mariner (2005-2009)
- Mazda Tribute (2001-2006, 2008-2009)
- Ford Escape (2001-2009)
