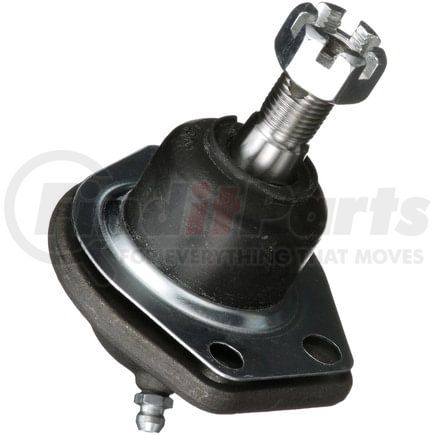

DELPHI TC2561 Ball Joint

★★★★★ (0)
Delphi TC2561 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 2 more

$31.99

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC2561 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC2561 Specifications

Product Attributes

Position(s)Front Lower
Item GradeStandard Replacement
MaterialSteel
ColorGray
Stud Thread Diameter0.563 IN
Castle Nut IncludedYes
Grease Fitting IncludedYes
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width71 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length0.984 IN
Mounting Bolt Length25.00 MM
Washers IncludedYes
Height3.622 IN
Nuts IncludedYes
Mounting Hole Quantity4
AdjustableNo
GreaseableYes
Stud Thread Length0.906 IN
Wrench Size13mm
Stud TypeThreaded
Mounting TypeBolt-In
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter8.00 MM
Mounting Bolt Head Diameter0.610 IN
Mounting Bolt Head Diameter15.50 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length24.00 MM
Mount Plate IncludedYes
Tapered StudYes
Stud Taper Per Foot0.167 IN
Stud Tapered End 2 Diameter0.608 IN
Stud Tapered End 2 Diameter15.45 MM
Stud Tapered End 1 Diameter0.772 IN
Stud Tapered End 1 Diameter19.6 MM
Stud Threads Per Inch18
Length90.00 MM
Length3.540 IN
Stud Thread Diameter14.3 MM
Height92.00 MM
Stud Thread Length23.01 MM
Mounting Bolt Shank Diameter0.310 IN
Mounting Bolt Thread Length0.940 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604299623
VMRS Code016001015
UNSPSC25174203

DELPHI TC2561 Cross References

BrandPart Number
DORMANB5269, B5269PR
General Motors9764247, 9769585
MAS Industries535-682
MEVOTECHMK5269
MOOG Chassis ProductsK5269
N/AMK5269, 535-682, GK5269, B5269, B5269PR, 610.62004

DELPHI TC2561 Fits Vehicles

  • Buick Riviera (1979-1985)
  • Cadillac Eldorado (1979-1985)
  • Cadillac Seville (1980-1985)
  • Chevrolet S10 (1983)
  • Chevrolet S10 Blazer (1983)
  • GMC S15 (1983)
  • GMC S15 Jimmy (1983)
  • Oldsmobile Toronado (1979-1985)
