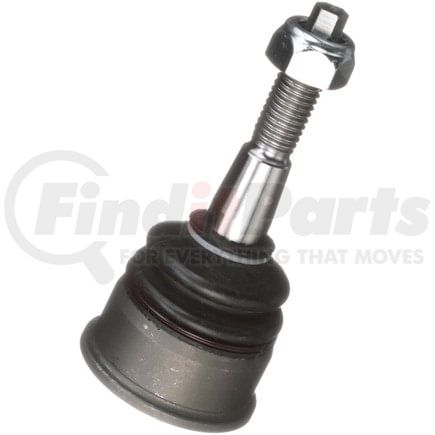

DELPHI TC2543 Ball Joint

★★★★★ (0)
Delphi TC2543 Suspension Ball Joint Ball Joint
DELPHI
Tap to view 1 more

$29.49

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC2543 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC2543 Specifications

Product Attributes

Position(s)Front Upper
Item GradeStandard Replacement
MaterialSteel
Maximum Outside Diameter1.870 IN
Maximum Outside Diameter47.50 MM
ColorGray
Stud Thread Diameter12 MM
Castle Nut IncludedNo
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width47.5 MM
Cotter Pin IncludedNo
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Washers IncludedNo
Height4.331 IN
Nuts IncludedYes
AdjustableNo
GreaseableNo
Stud Thread Length1.22 IN
Stud TypeThreaded
Mounting TypePress-In
Dust Boot MaterialRubber
Mounting Bolts IncludedNo
Mount Plate IncludedNo
Tapered StudYes
Stud Taper Per Foot0.167 IN
Stud Tapered End 2 Diameter0.526 IN
Stud Tapered End 2 Diameter13.35 MM
Stud Tapered End 1 Diameter0.63 IN
Stud Tapered End 1 Diameter16 MM
Stud Thread Pitch1.75 MM
Length110.00 MM
Length4.330 IN
Stud Thread Diameter0.47 IN
Height110.01 MM
Stud Thread Length30.99 MM

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604299517
VMRS Code016001014
UNSPSC25174203

DELPHI TC2543 Cross References

BrandPart Number
DORMANBJ85126, BJ85126XL
Dorman520-287, 520-288
Ford1L2Z 3084-AA, 1L2Z 3085-AA
MAS IndustriesCB85177PR, CB85178PR
MEVOTECHMK80008, TXK80008
MOOGK80008
MOOG Chassis ProductsCK620224, CK620225, K200193, K80008, RK620224, RK620225
N/ATXK80008, BJ85126XL, MK80008, GK80008, BJ85126, 610.65018
TRWJBJ889

DELPHI TC2543 Fits Vehicles

  • Ford Explorer (2002-2005)
  • Lincoln Aviator (2003-2005)
  • Mercury Mountaineer (2002-2005)
