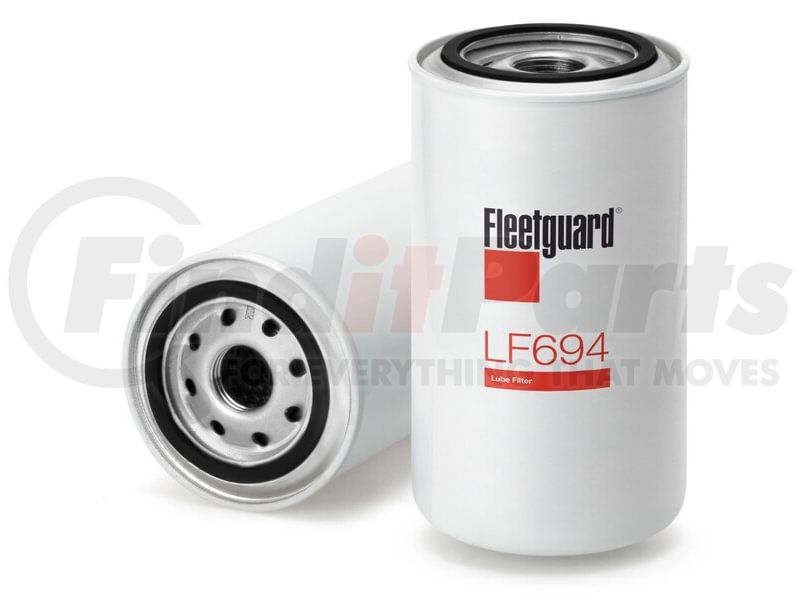

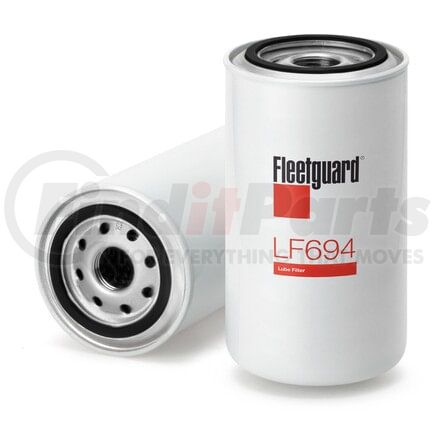

(888) 312-8812 Login SignupFLEETGUARD LF694 Engine Oil Filter - 6.91 in. Height, 3.67 in. (Largest OD), Thermo-King 113712
Tap to view 2 more
MSRP: $28.51
$2599
Save $2.52
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
FLEETGUARD LF694 Part Description
FLEETGUARD LF694 Specifications
Product Attributes
| Height | 6.91 in. (175.51 mm) |
| Micron Rating | 68 percent at 30 Microns |
| Gasket Inside Diameter | 2.46 in. (62.48) |
| Gasket Outside Diameter | 2.83 in. (71.88) |
| Notes | Spin-On |
| Outside Diameter (Largest) | 3.67 in. (93.22 mm) |
| Seam Outside Diameter | 3.69 in. (93.73) |
| Standpipe | NO |
| Thread Size | 1-12 UNF-2B |
| Largest Od | 93.13 mm |
| Overall Height | 6.911 in |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 6.911421055 in |
| Largest Outside Diameter | 3.6921186 IN |
| Gasket Inside Diameter | 2.4618061 IN |
| Gasket Outside Diameter | 2.8338526 IN |
| Height | 6.911421055 in |
| Largest Outside Diameter | 3.6921186 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| UPC | 00638217109584 |
FLEETGUARD LF694 Cross References
| Brand | Part Number |
|---|---|
| FGLF694, HK4Z9966600DA | |
| AC | PF894 |
| BALDWIN | BT365 |
| Benati | 1839106 |
| Big A | 2035, 92461, 92807 |
| CARQUEST | 85461, 85807 |
| Caterpillar | 9Y4476 |
| Champ | LFP3712 |
| Coopers | LSF5049 |
| Crosland | 9330 |
| Cummins | 1220731 |
| Cyclone | PM455 |
| Donaldson | LFP553712, P172509, P553712, P779154 |
| GMC | 25010065 |
| Guardian | G051807 |
| Hydra-mac | 3408305 |
| Kralinator | L53 |
| LUBER-FINER | LFP3712 |
| MANN-HUMMEL FILTERS | W950/1 |
| Mann-Filter | W954, WD10020 |
| Mitsubishi | 3474000200 |
| Motorcraft | FL763, FL763FP |
| N/A | LFH4967, 20113712, 25010065, 73321C1, SH70011 |
| NAPA | 1461, 1763, 1807 |
| PREMIUM GUARD | HG50027 |
| Permatic | FH131V |
| Purolator | 6701903, L40127, PER127 |
| THERMO-KING | 113712 |
| Thermo-King | 119099, 123712, 20113712 |
| UFI | 2315200 |
| WIX FILTERS | WIX FILTERS, 51807 |
| Wix | 51461, 51763, 51807, 551461 |
| Woodgate | WGL694 |
FLEETGUARD LF694 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF694 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
