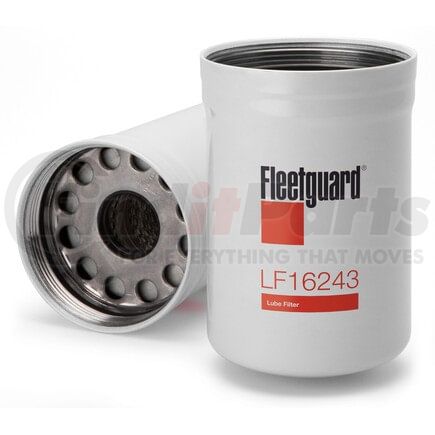

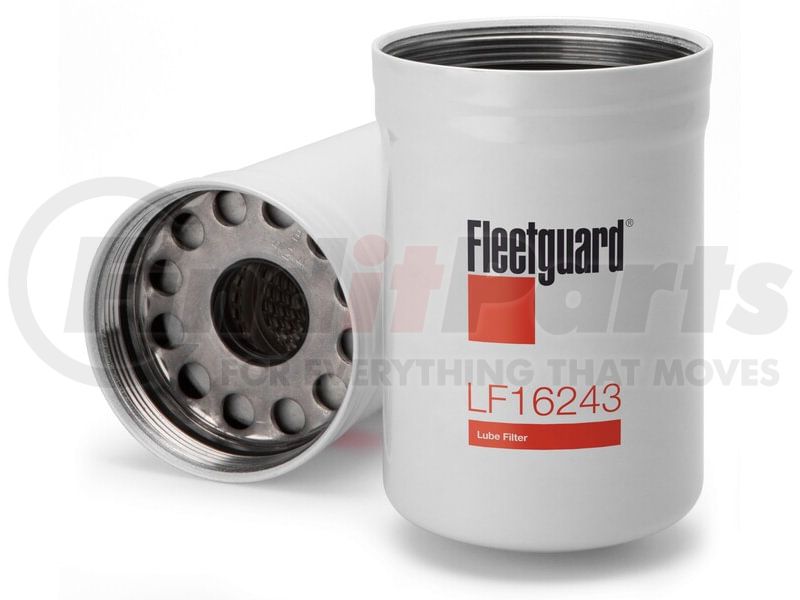

(888) 312-8812 Login SignupFLEETGUARD LF16243 Engine Oil Filter - 5.95 in. Height, 3.91 in. (Largest OD)
Tap to view 1 more
MSRP: $40.76
$2499
Save $15.77
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
FLEETGUARD LF16243 Part Description
Manufacturer
Product Description
Lube, Spin-On
Features & Benefits
- Metric M92 x 2.5 thread fits dedicated mounting ports
- Spin-on body shape supports familiar service handling
- Thick outer shell presents a substantial installed appearance
- Flat sealing surface provides broad gasket contact
Fleetguard Spin-On Lube Filter
The Fleetguard Spin-On Lube Filter is selected first for its thread interface, which allows it to mate directly with metric mounting points found on specific engine designs. During service, the filter is threaded into place by hand before final tightening, forming a sealed connection that allows internal circulation to begin once the engine is running. Inside the housing, the material follows a guided path that screens contaminants during the lubrication process. This action continues automatically while the engine operates under changing conditions. The Fleetguard LF16243 aligns with systems that rely on metric thread standards rather than inch-based formats.
| Type | Spin On |
FLEETGUARD LF16243 Specifications
Product Attributes
| Height | 5.95 in. (151.13 mm) |
| Gasket Outside Diameter | 3.66 in. (92.96) |
| Notes | Spin-On |
| Outside Diameter (Largest) | 3.91 in. (99.31 mm) |
| Standpipe | No |
| Thread Size | M92 x 2.5-6H |
| BPV Setting | No |
| Largest Od | 99.3 mm |
| Overall Height | 5.945 inch |
| Thread Diameter | 92 mm |
| Thread Form | Metric |
| Thread Pitch | 2.5 mm per Thread |
| Gasket Outside Diameter | 3.657875991 IN |
| Height | 5.9448851 in |
| Largest Outside Diameter | 3.90945093 IN |
| Gasket Outside Diameter | 3.657875991 IN |
| Gasket Outside Diameter | 3.657875991 IN |
| Height | 5.9448851 in |
| Height | 5.9448851 in |
| Largest Outside Diameter | 3.90945093 IN |
| Largest Outside Diameter | 3.90945093 IN |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
FLEETGUARD LF16243 Cross References
| Brand | Part Number |
|---|---|
| FGLF16243, HC3Z14401MM | |
| BALDWIN | B7322 |
| CARQUEST | 84750, 84750S |
| Cummins | 1220885, 1220923 |
| Donaldson | P550779 |
| FRAM | PH10220 |
| GRADALL | 91534005 |
| Hastings | LF622 |
| Hengst | H359W |
| JOHN DEERE | RE504836 |
| John Deere | RE502513, RE507522, RE541420 |
| Kohler | GM32809 |
| LUBER-FINER | LFP4836 |
| Liebherr | 7090561 |
| Manitou | 798295 |
| Mann-Filter | W1022 |
| N/A | F026407134, LFP550779, 22206148, 6005028743, C04521, S3590R, PSL598, WO761, SO10044, Z662 |
| NAPA | 7750, 7750S |
| PREMIUM GUARD | HG50009 |
| Renault | 6005028743 |
| SDMO | 330361669, 330510062, 330560661 |
| Sakura | C7607 |
| Tecnocar | EG7078 |
| Vapormatic | VPD5120 |
| WIX FILTERS | 57750S |
| Wix | 57750, 57750S |
FLEETGUARD LF16243 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF16243 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
FLEETGUARD LF16243 Questions & Answers
No questions yet
Be the first to ask a question about this product!
