Need help? We're here!
(888) 312-8812 Login SignupFLEETGUARD FS19532 Fuel/Water Separator, Spin-On
$4799
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 19
FLEETGUARD FS19532 Part Description
Manufacturer
Features & Benefits
- One-piece spin-on construction makes the complete separator serviceable together
- Lowers pump and injector exposure to water and particulate contamination
- Groups shell and filtration media into one serviceable separator unit
- Water separation removes moisture before it travels farther through the system

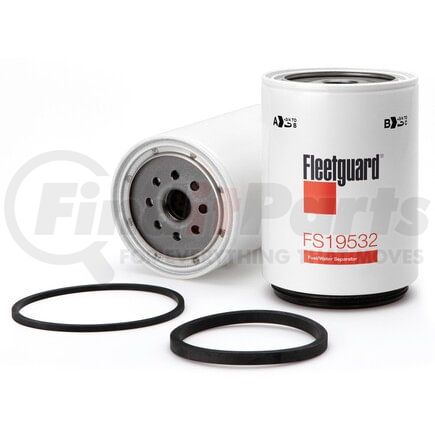

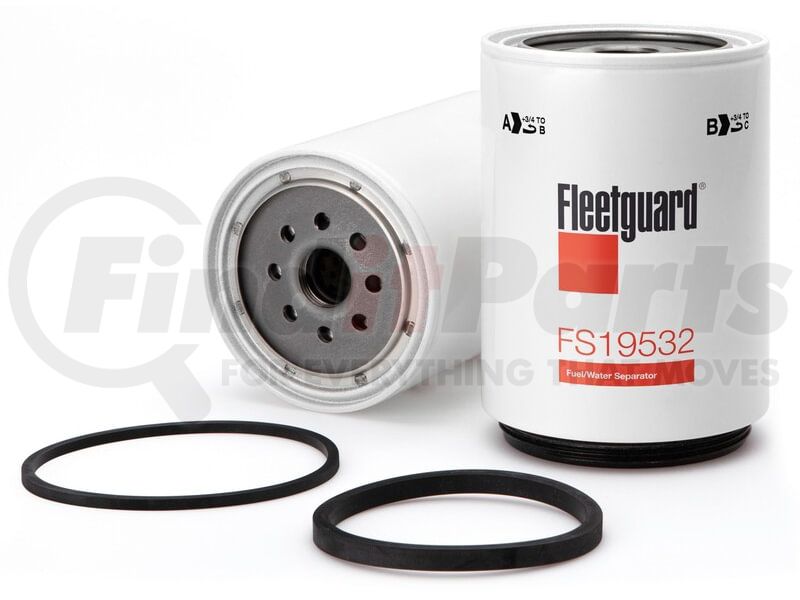

Fleetguard Fuel/Water Separator
Separate water and particulate contamination from diesel fuel with the Fleetguard Fuel/Water Separator. Its one-piece spin-on design puts the filtration media and shell into the same service component, so both are renewed when the separator is changed. The Fleetguard FS19532 performs that two-part contaminant-control job before fuel continues toward pumps and injection hardware. This makes it a straightforward whole-filter option where the intended service method is complete separator replacement rather than cartridge-only maintenance.
| Attributes | |
|---|---|
| Largest Outside Diameter | 107.95 mm (4.25 inch) |
| Gasket Outside Diameter | 91.4 mm (3.598 inch) |
| Thread Diameter | 1.0 in |
| Thread Pitch | 14.0 threads Per Inch |
| Thread Class | 2B |
| Thread Form | Unified National |
| Emulsified Water Separation | 97.0 |
| Free Water Separation | 97.0 |
| Product Comments | |
| For drain only version with no sensor port use FS19932 | |
| Uses Service Part | |
| 3948395S |
FLEETGUARD FS19532 Specifications
Product Attributes
| Gasket Inside Diameter | 3.209844253 IN |
| Gasket Outside Diameter | 3.59842714 IN |
| Height | 6.11023952 in |
| Largest Outside Diameter | 4.250002295 IN |
| Media Type | Cellulose IN |
| Primary Particle Efficiency | 17.3 micron (c) @ 98.7% IN |
FLEETGUARD FS19532 Cross References
| Brand | Part Number |
|---|---|
| FGFS19532, HAMZ19712BN | |
| Atlas-Copco | 1604754300, 2914807000 |
| BALDWIN | BF1329, BF1329-SP, BF1339-SP, BF46072, BF46083-O |
| Baldwin | BF1329O, BF1329SP, BF1339SP, BF46083O, BF9816 |
| Blue Bird | 1967009 |
| Bosch | 986450734, F026402025 |
| Champ | LFF3290 |
| Claas | 11342140, 687110, 6871100, 7733150 |
| Coopers | FSM4208 |
| DAF | 1296851, 1529639 |
| Donaldson | P502457, P550747, P551067, P551361, P551767, P551856 |
| Doosan | 40050400146, 40050411146 |
| Eaton | 4102H1510 |
| FRAM | PS7716, PS8486 |
| Freightliner | RAIR90P |
| GMC | 93297277 |
| Gonher | GPP1061 |
| Grove | 3322877, 4157422 |
| Hastings | FF1112, FF1152SP |
| Hengst | H7090WK30 |
| Hino | 233900000000000 |
| Hyundai | 11EM52320, 11LB20310 |
| John Deere | RE500186 |
| Kohler | 411900028 |
| LUBER-FINER | LFF3290, LFF8038, LFF5766 |
| MAHLE | KC249D |
| MAN | 51125030066 |
| MANN-HUMMEL FILTERS | WK1060/3X |
| Mann-Filter | WK10601, WK10603X |
| Mercedes-Benz | 3754770002, A3754770002 |
| N/A | 0986BF0222, CX1012, 490R, BF13290, 22201388, LFF12231, R160TMH, 71471278, 1092035897, 23514654, H7090WDK30, 7424993621, 13224043, 23390E0010, AT433550, 9239760118, FC7912, S4143NR, PSD470/6, 15504879, 3076PS7716, KC124, 84211170, SN909030, Z368, ALG2172, A222100000207, BF1329, 93297277, BR90FRT30 |
| NAPA | 3838 |
| Parker | PFF5609 |
| RACOR | R90P |
| Racor | PFF5579, R9030M, R90BB02 |
| SDMO | 330051039, 330560646 |
| Sakura | SFC791230 |
| Scania Vabis | 1393640 |
| Tamrock | 88523979 |
| Volvo | 3945966, 8129975, 8159975, 81599755 |
| WIX FILTERS | 33231, WF10012 |
| Wix | 33838 |
FLEETGUARD FS19532 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD FS19532 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
FLEETGUARD FS19532 Questions & Answers
No questions yet
Be the first to ask a question about this product!
