MOOG part description

Product Description

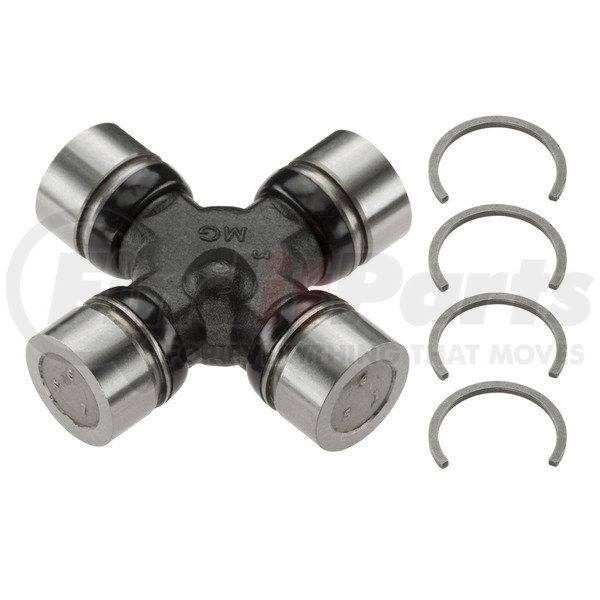

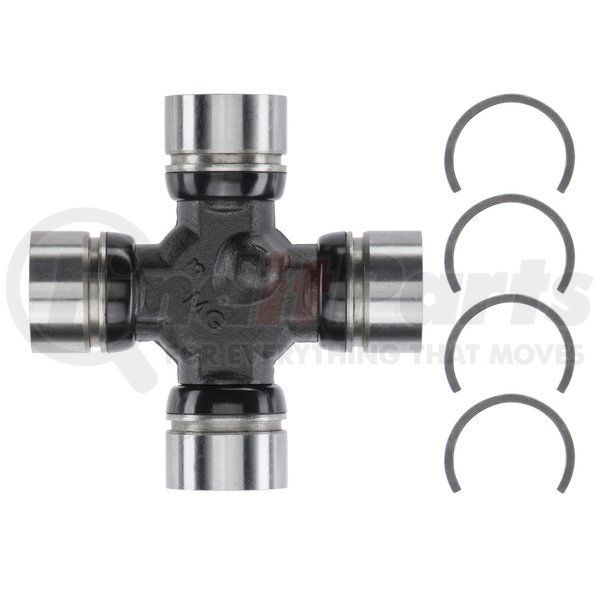

Non-Greaseable Super Strength Universal Joint

Features & Benefits

  • BUILT TO LAST -- Rugged design specifically engineered for applications with higher torque and horsepower
  • COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
  • CORROSION PROTECTION -- Exclusive MICRO SHIELDâ„¢ coating protects against rust and corrosion
  • KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
  • RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
  • STRONG AND DURABLE -- Bearing cups are cold-forged, case-hardened and precision ground while steel cross is forged and carburized heat treated for strength and durability

Product Attributes

Bearing Cap Axis 1 Diameter 1.188 IN
Bearing Cap Axis 1 Diameter 30.2 MM
Bearing Cap Axis 2 Diameter 1.188 IN
Bearing Cap Axis 2 Diameter 30.2 MM
Bearing Cap Type 4 Plain Round Bearings
Bearing Type A Round Plain
Bearing Type B Round Plain
Length Axis 1 2.293 IN
Length Axis 1 58.24 MM
Length Axis 2 2.293 IN
Length Axis 2 58.24 MM
Length Measurement A Outside of Bearing to Outside of Bearing
Length Measurement B Outside of Bearing to Outside of Bearing
Greasable No
U-Joint Identification 4 Plain Round Bearings
Part Description Universal Joint

Additional Information

Country of Origin (Primary) MX
Canadian Harmonizing Tariff Code 8708991510
Harmonized Tariff Code (Schedule B) 8708996810
Harmonized Tariff Code (HTS) 8708996810
UPC 00080066027777

Part Interchanges

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
