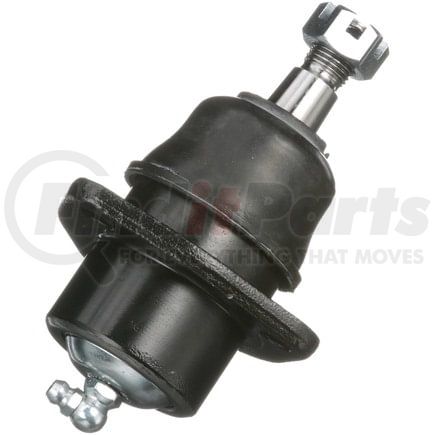

(888) 312-8812 Login SignupDELPHI TC5382 Ball Joint
Tap to view 5 more
$3899
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
DELPHI TC5382 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5382 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.878 IN |
| Maximum Outside Diameter | 47.70 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.201 IN |
| Mounting Bolt Length | 30.50 MM |
| Washers Included | Yes |
| Height | 4.087 IN |
| Height | 103.80 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 0.925 IN |
| Stud Thread Length | 23.5 MM |
| Wrench Size | 13mm |
| Distance Between Mounting Holes | 45.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.313 IN |
| Mounting Bolt Shank Diameter | 7.90 MM |
| Mounting Bolt Head Diameter | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Pitch | 0.94 MM |
| Mounting Bolt Thread Length | 0.906 IN |
| Mounting Bolt Thread Length | 23.00 MM |
| Mounting Bolt Thread Diameter | 7.90 MM |
| Mount Plate Included | Yes |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.63 IN |
| Stud Tapered End 2 Diameter | 16 MM |
| Stud Tapered End 1 Diameter | 0.541 IN |
| Stud Tapered End 1 Diameter | 13.75 MM |
| Stud Thread Pitch | 12 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289563 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC5382 Cross References
DELPHI TC5382 Fits Vehicles
- Chevrolet Nomad (1955-1957)
- Chevrolet Del Ray (1958)
- Chevrolet Estate (1969-1970)
- Chevrolet Corvair Truck (1961-1964)
- Chevrolet Parkwood (1959-1961)
- Chevrolet Sedan Delivery (1955-1958)
- Chevrolet Two-Ten Series (1955-1957)
- Chevrolet Townsman (1969-1970)
- Chevrolet One-Fifty Series (1955-1957)
- Chevrolet Kingswood (1959-1961, 1969-1970)
- Chevrolet Impala (1958-1970)
- Chevrolet El Camino (1959-1960)
- Chevrolet Caprice (1966-1970)
- Chevrolet Brookwood (1958-1961, 1969-1970)
- Chevrolet Biscayne (1958-1970)
- Chevrolet Bel Air (1955-1970)
- Chevrolet Corvette (1963-1982)
