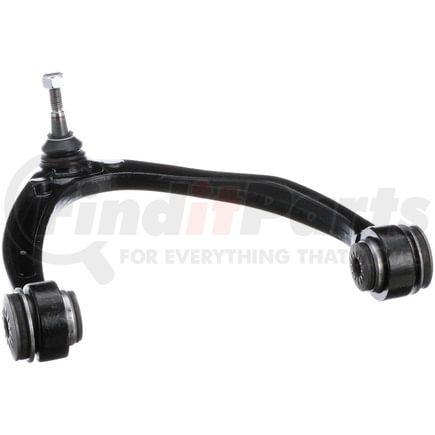

(888) 312-8812 Login SignupDELPHI TC5188 Control Arm and Ball Joint Assembly
Tap to view 20 more
$7999
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5188 Part Description
DELPHI TC5188 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 305.00 MM |
| Control Arm Maximum Width | 12.008 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 3.307 IN |
| Ball Joint Stud Length | 84.00 MM |
| Control Arm Maximum Length | 13.583 IN |
| Control Arm Maximum Length | 345.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | CN |
| UPC | 00689604288467 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5188 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | CK80670, RK80670 |
| General Motors | 25812726 |
| MAS Industries | CB90268, CB90268PR |
| TRW | JTC1510 |
| N/A | 15096198, GK80670, 521-024, CTXK80670, TXK80670, CMK80670 |
DELPHI TC5188 Fits Vehicles
- GMC Yukon XL (2015-2019)
- Chevrolet Suburban (2014-2019)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2016)
- GMC Sierra 1500 (2007-2019)
- Chevrolet Silverado 1500 (2007-2016)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- GMC Yukon (2007-2019)
- Chevrolet Tahoe (2007-2019)
- Cadillac Escalade (2007-2019)
- GMC Yukon XL 1500 (2000-2014)
