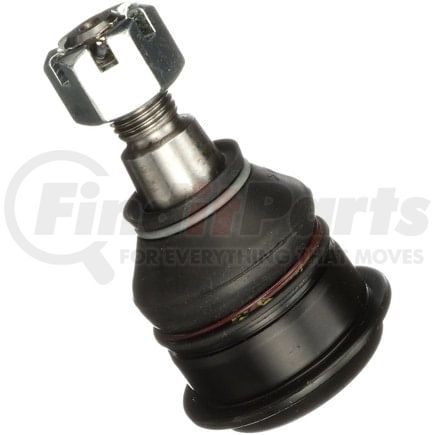

(888) 312-8812 Login SignupDELPHI TC5070 Ball Joint
Tap to view 8 more
$1849
Limited availability at this price!
In Stock
Get it by Friday, Jul 17
DELPHI TC5070 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5070 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.92 IN |
| Maximum Outside Diameter | 48.80 MM |
| Color | Gray |
| Stud Thread Diameter | 0.55 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48.80 MM |
| Type | Threaded |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.36 IN |
| Height | 85.50 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.96 IN |
| Stud Thread Length | 24.40 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Stud Thread Pitch | 1.5 MM |
| Length | 48.80 MM |
| Length | 1.92 IN |
| Thread Direction | Clockwise (Right) |
| Pre-Greased | Yes |
| Outside Diameter | 48.80 MM |
| Bearing Type | Plastic |
| Boot Color | Black |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 20.60 MM |
| Stud Tapered End 1 Diameter | 16.75 MM |
| Retaining Ring Included | Yes |
| Outside Diameter | 1.92 IN |
| Stud Tapered End 2 Diameter | 0.81 IN |
| Stud Tapered End 1 Diameter | 0.65 IN |
| Width | 1.92 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604283615 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5070 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-4915, 102-4916 |
| DORMAN | B9818, B9818XL |
| Datsun/Nissan | 4016031U00, 54500-0P050, 54500-39U11, 54500-41U02, 5450039U00, 5450041U00, 54501-0P050, 54501-41U00, 5450139U00, 5450141U02 |
| Dorman | 520-519, 520-520, 523-607 |
| MAS Industries | CB30428, CB30428PR, CB30429, CB30429PR, 536-996 |
| MEVOTECH | MK9818 |
| MOOG Chassis Products | CK620352, K9818, RK620352, RK620353, 102-4916 |
| N/A | GK9818, B9818XL, MK9818, B9818, 536-996 |
| TRW | JBJ7523 |
DELPHI TC5070 Fits Vehicles
- Nissan Maxima (1995-1999)
- INFINITI J30 (1995-1997)
- INFINITI I30 (1996-1999)
