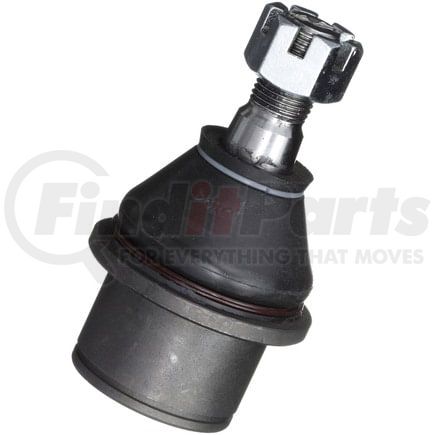

(888) 312-8812 Login SignupDELPHI TC5061 Ball Joint
Tap to view 8 more
$3649
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5061 Part Description
DELPHI TC5061 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.138 IN |
| Maximum Outside Diameter | 54.30 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 54.3 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.965 IN |
| Height | 100.70 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.24 IN |
| Stud Thread Length | 31.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | No |
| Stud Thread Pitch | 1.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604283080 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5061 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 2L1Z 3078-CA, K500060, GK80039, BJ86065, JBJ1177, 536-242, MK80039 |
DELPHI TC5061 Fits Vehicles
- Lincoln Navigator (2003-2006)
- Ford Expedition (2003-2006)
