(888) 312-8812 Login SignupDELPHI TC5054 Suspension Stabilizer Bar Link
Tap to view 5 more
$4649
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Jul 30
DELPHI TC5054 Part Description
Manufacturer
Product Description

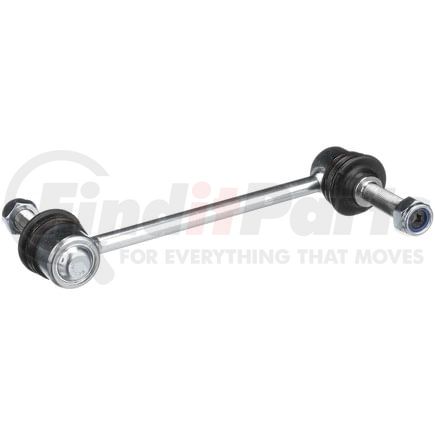

Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5054 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Steel |
| Length | 205.00 MM |
| Length | 8.071 IN |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | M14 |
| Width | 40 MM |
| Width | 1.575 IN |
| Washers Included | No |
| Height | 7.480 IN |
| Height | 190.00 MM |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Bolt Head Diameter | 14.00 MM |
| Bolt Length | 42.50 MM |
| Bolt Length | 1.673 IN |
| Bolt Thread Diameter | 14.00 MM |
| Locking Nuts Included | Yes |
| Bolt Head Diameter | 0.550 IN |
| Bolt Thread Diameter | 0.550 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604283455 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5054 Cross References
DELPHI TC5054 Fits Vehicles
- Mercedes-Benz R63 AMG (2007)
- Mercedes-Benz R500 (2006-2007)
- Mercedes-Benz R350 (2006-2007)
