(888) 312-8812 Login SignupDELPHI TC5040 Ball Joint
Tap to view 8 more
$2349
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 24

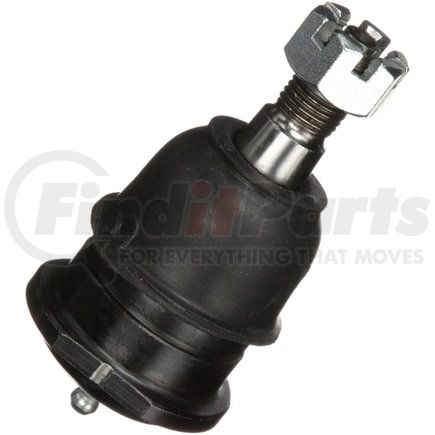

DELPHI TC5040 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5040 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.875 IN |
| Stud Thread Diameter | 22.2 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.150 IN |
| Height | 105.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Stud Thread Length | 0.874 IN |
| Stud Thread Length | 22.2 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 1.236 IN |
| Stud Tapered End 2 Diameter | 31.4 MM |
| Stud Tapered End 1 Diameter | 1.063 IN |
| Stud Tapered End 1 Diameter | 27 MM |
| Stud Threads Per Inch | 14 |
| Stud Thread Pitch | 0.55 MM |
| Length | 64.00 MM |
| Length | 2.520 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604283103 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5040 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4073 |
| DORMAN | B9097, B9097PR |
| Datsun/Nissan | 54499W2200, 54499W2210, 54500W2200, 54500W2210 |
| MEVOTECH | MK9097 |
| MOOG Chassis Products | K9097, RK620550, RK620551 |
| N/A | GK9097, 61042034, 10356, B9097, MK9097, B9097PR |
DELPHI TC5040 Fits Vehicles
- Nissan Maxima (1982-1984)
- Nissan 810 (1981)
- Nissan 200SX (1984-1988)
