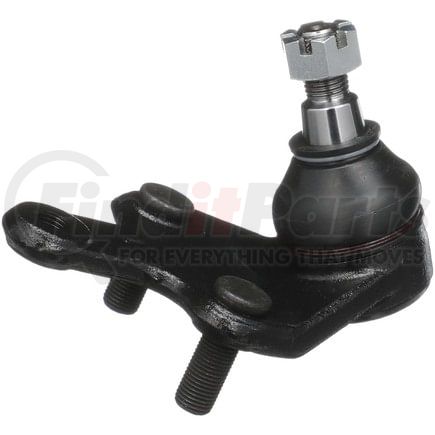

(888) 312-8812 Login SignupDELPHI TC5009 Ball Joint
Tap to view 5 more
$4599
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
DELPHI TC5009 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5009 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.047 IN |
| Maximum Outside Diameter | 52.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.625 IN |
| Stud Thread Diameter | 15.8 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 52 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.728 IN |
| Height | 94.70 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.902 IN |
| Stud Thread Length | 22.9 MM |
| Stud Type | Threaded |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.831 IN |
| Stud Tapered End 2 Diameter | 21.1 MM |
| Stud Tapered End 1 Diameter | 0.693 IN |
| Stud Tapered End 1 Diameter | 17.6 MM |
| Stud Threads Per Inch | 18 |
| Stud Thread Pitch | 0.7 MM |
| Length | 52.00 MM |
| Length | 2.050 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604283127 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5009 Cross References
DELPHI TC5009 Fits Vehicles
- Lexus RX450hL (2018-2022)
- Lexus RX350L (2018-2022)
- Toyota Venza (2009-2016)
- Toyota Sienna (2011-2020)
- Lexus RX450h (2010-2022)
- Lexus RX350 (2010-2022)
- Toyota Highlander (2008-2019)
