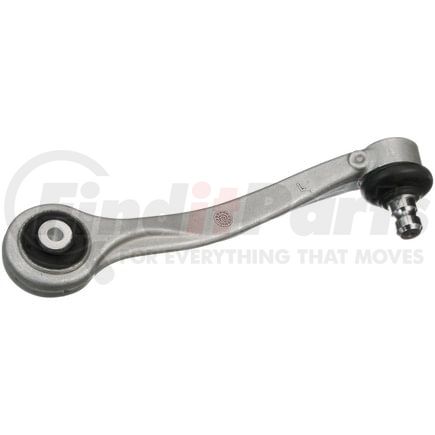

(888) 312-8812 Login SignupDELPHI TC3557 Control Arm and Ball Joint Assembly
Tap to view 5 more
$6949
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC3557 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3557 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Rearward |
| Grease Fitting Included | No |
| Control Arm Construction | Casting/Forged |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.969 IN |
| Control Arm Maximum Width | 50.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 18.0 MM |
| Ball Joint Stud Length | 46.00 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Stud Type | Grooved |
| Ball Joint Included | Yes |
| Control Arm Material | Aluminum |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.811 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604286043 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC3557 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4H0 407 509 E, 4H0 407 509 F |
| Beck/Arnley | 102-8005 |
| CORTECO | 49395608 |
| DORMAN | 524-229, CB12117, CB12117PR |
| MEVOTECH | CMS70188 |
| MEYLE | 1160500147/HD |
| MOOG Chassis Products | RK622847 |
| N/A | CMS70188, CB12117, 524-229, CB12117PR |
| VAICO | V10-3480 |
DELPHI TC3557 Fits Vehicles
- Audi S8 (2013-2017)
- Audi A8 Quattro (2010-2018)
