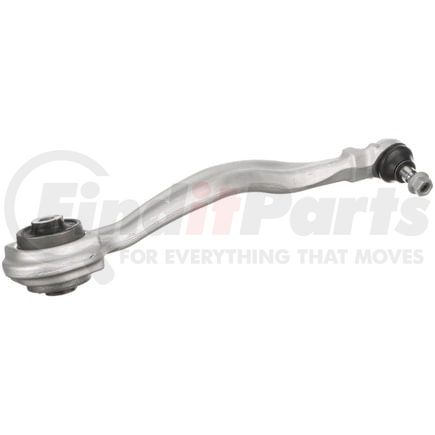

(888) 312-8812 Login SignupDELPHI TC3473 Control Arm and Ball Joint Assembly
Tap to view 5 more
$10199
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC3473 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3473 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Grease Fitting Included | No |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.039 IN |
| Control Arm Maximum Width | 128.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 71.00 MM |
| Control Arm Maximum Length | 20.276 IN |
| Mounting Hole Diameter | 14.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Control Arm Maximum Length | 515.01 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.795 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604286104 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC3473 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB28188, CB28188PR |
| Dorman | 526-804 |
| MEVOTECH | CMS101338 |
| MEYLE | 0160500096HD |
| MOOG | RK623702 |
| Mercedes-Benz | 204 330 74 11, A 204 330 74 11 |
| N/A | 204 333 11 14, 221 333 19 14, 2043309111, 102-6265, CMS101338, CB28188, CB28188PR, A204 333 1114, A 221 333 19 14 |
| VAICO | V303377 |
DELPHI TC3473 Fits Vehicles
- Mercedes-Benz E350 (2012-2014)
- Mercedes-Benz C250 (2010-2012)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C350 (2008-2015)
- Mercedes-Benz C300 (2008-2014)
