DELPHI TC1232 Part Description
Manufacturer
Product Description

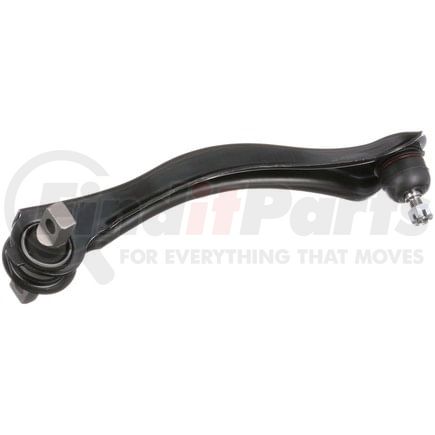

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1232 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.310 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Stud Length | 50.00 MM |
| Ball Joint Stud Length | 1.969 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Control Arm Maximum Width | 84.07 MM |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.394 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604288658 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC1232 Cross References
| Brand | Part Number |
|---|---|
| CORTECO | 49397434 |
| DORMAN | 520-629, CB30217, CB30217PR |
| Honda | 52400-SM1-033 |
| MEVOTECH | CMK80357, CMS6070 |
| MOOG | RK80357 |
| N/A | 102-4374, RK80357, CMK80357, CB30217, 520-629, GK80357, 623.40063, CMS6070, GK80356, 52400SM1A01, 52400SM1A02, 52400SM1A03, 52400-SM1-A04, 52400SM4033, 52400-SM4-043, 52400SM4A01, 52400SM4A02, 52400SM4A03, 52400SM4A04 |
| TRW | JTC704 |
DELPHI TC1232 Fits Vehicles
- Honda Accord (1990-1997)
- Acura Vigor (1992-1994)
- Acura CL (1997-1999)
