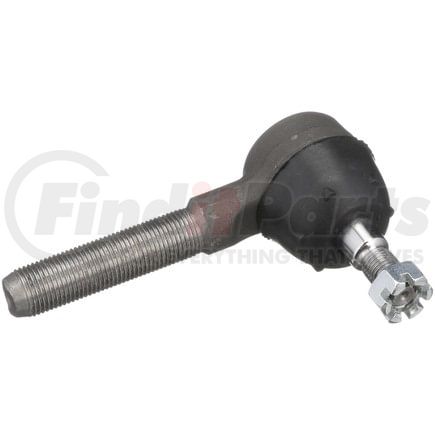

Delphi TA5390 - Tie Rod End
$2599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Inner, Left Inner, Outer, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 125.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.438 IN |
| Height | 82.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 0.88 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length - Stud Center to End | 104.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.625 IN |
| End 2 Thread Diameter | 11.13 MM |
| End 1 Thread Diameter | 15.88 MM |
| Length - Stud Center to End | 4.094 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604287774 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Chevrolet Corvair Truck (1963-1964)
- Chevrolet C10 Panel (1963-1964)
- GMC Suburban (1963-1964)
- GMC 1000 Series (1963-1964)
- Chevrolet Suburban (1963-1964)
- Chevrolet P10 Series (1963-1964)
- Chevrolet Impala (1963-1964)
- Chevrolet G10 Van (1964)
- Chevrolet Corvair (1963-1964)
- Chevrolet Chevy II (1963-1967)
- Chevrolet C10 Pickup (1963-1964)
- Chevrolet Biscayne (1963-1964)
- Chevrolet Bel Air (1963-1964)
- Chevrolet Corvette (1963-1982)
