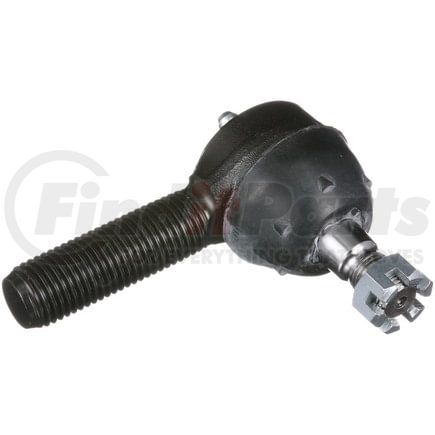

Delphi TA5339 - Tie Rod End
$3499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 105.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 41 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.750 IN |
| End 2 Thread Diameter | 19.05 MM |
| Height | 82.40 MM |
| Housing Material | Steel |
| Tube Diameter | 0.750 IN |
| Tube Diameter | 19.05 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 0.77 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Length - Stud Center to End | 3.268 IN |
| Length - Stud Center to End | 83.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 12 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.500 IN |
| End 1 Thread Diameter | 12.70 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289181 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Fargo W100 Pickup (1972)
- Fargo W200 Pickup (1969-1972)
- Dodge W300 Pickup (1969-1974)
- Dodge W200 Pickup (1969-1974)
- Plymouth Trailduster (1975-1981)
- Dodge W350 (1981-1993)
- Dodge W300 (1975-1980)
- Dodge W250 (1981-1985)
- Dodge W200 (1975-1980)
- Dodge W150 (1977-1985)
- Dodge W100 (1975-1977, 1984-1985)
- Dodge Ramcharger (1975-1985)
- Dodge RD200 (1979-1980)
