(888) 312-8812 Login SignupDELPHI TA5332 Tie Rod End
Tap to view 5 more
$2249
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 28
DELPHI TA5332 Part Description
Manufacturer
Product Description

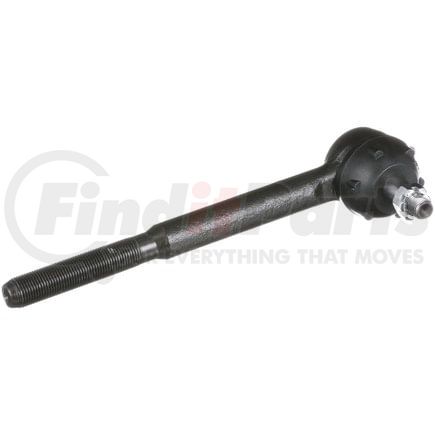

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5332 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 237.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.625 IN |
| End 2 Thread Diameter | 15.88 MM |
| Height | 76.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 1.27 lb |
| Cone Outside Diameter | 15.90 MM |
| Bearing Material | Plastic |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 8.228 IN |
| Length - Stud Center to End | 209.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.437 IN |
| End 1 Thread Diameter | 11.11 MM |
| Shank Length | 15.90 MM |
| Stud Length | 15.90 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.626 IN |
| Stud Length | 0.626 IN |
| Cone Outside Diameter | 0.626 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604289143 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5332 Cross References
DELPHI TA5332 Fits Vehicles
- Pontiac Firebird (1982-1992)
- Chevrolet Camaro (1982-1992)
