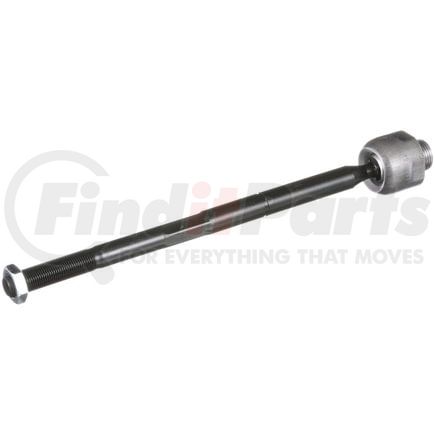

DELPHI TA5262 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5262 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 333.00 MM |
| Color | Black and Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 40 MM |
| Type | Straight |
| End 2 Thread Diameter | 24.00 MM |
| Height | 40.00 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.79 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 2 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 11.772 IN |
| Length - Stud Center to End | 299.00 MM |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 13 |
| End 1 Thread Diameter | 16.00 MM |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.945 IN |
| End 1 Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604288559 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5262 Cross References
DELPHI TA5262 Fits Vehicles
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2014)
- GMC Sierra 1500 (2007-2013)
- Chevrolet Silverado 1500 (2007-2013)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- GMC Yukon (2007-2014)
- Chevrolet Tahoe (2007-2014)
- Cadillac Escalade (2007-2014)
