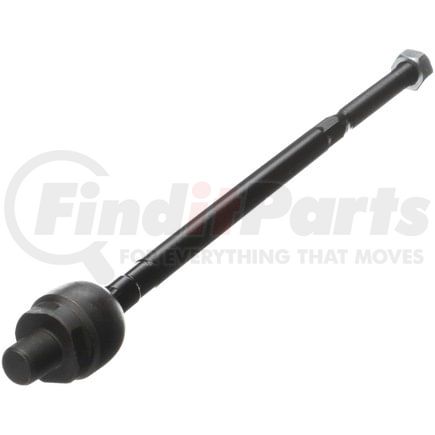

DELPHI TA5093 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5093 Specifications
Product Attributes
| Position(s) | Inner |
| Item Grade | Standard Replacement |
| Length | 329.90 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | No |
| Width | 37.1 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.669 IN |
| End 2 Thread Diameter | 17.00 MM |
| Height | 37.10 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.21 lb |
| Cone Outside Diameter | 0.551 IN |
| Cone Outside Diameter | 14.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 12.992 IN |
| Length - Stud Center to End | 330.00 MM |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 14.00 MM |
| Stud Length | 14.00 MM |
| Grade Type | Standard Replacement |
| Boot Color | Black |
| Shank Length | 0.551 IN |
| Stud Length | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604283684 |
| VMRS Code | 015004070 |
| UNSPSC | 25174205 |
DELPHI TA5093 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | 532-888, IS254, IS254PR |
| MEVOTECH | MEV254 |
| N/A | BF67-32-240, B09332240, GEV254, IS254, MEV254, IS254PR |
DELPHI TA5093 Fits Vehicles
- Mercury Tracer (1987-1989)
