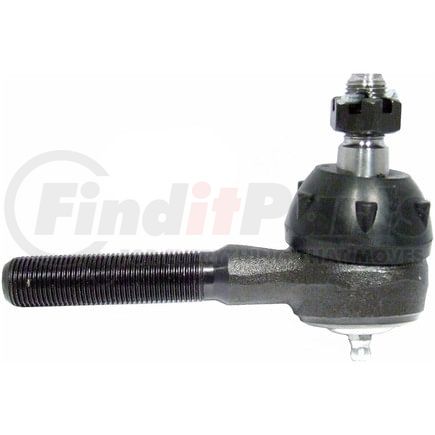

(888) 312-8812 Login SignupDELPHI TA2267 Tie Rod End
$2699
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
DELPHI TA2267 Part Description
DELPHI TA2267 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 83.80 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.630 IN |
| Tube Diameter | 16.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 0.88 lb |
| Cone Outside Diameter | 16.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| Length - Stud Center to End | 4.252 IN |
| Length - Stud Center to End | 108.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 20 |
| End 1 Thread Diameter | 0.500 IN |
| End 1 Thread Diameter | 12.70 MM |
| Shank Length | 16.50 MM |
| Stud Length | 16.50 MM |
| Grade | Premium |
| Shank Length | 0.650 IN |
| Stud Length | 0.650 IN |
| Cone Outside Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604290637 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2267 Part Interchanges
| Brand | Part Number |
|---|---|
| TRW | JTE1274 |
| N/A | 2W7Z 3A130-AA, ES3495, MES3495, TO86445, GES3495, TO86035 |
DELPHI TA2267 Fits Vehicles
- Ford LTD Crown Victoria (1987-1991)
- Mercury Marquis (1979-1982)
- Mercury Grand Marquis (1979-2002)
- Mercury Colony Park (1987-1991)
- Lincoln Town Car (1981-2002)
- Lincoln Mark VI (1980-1983)
- Lincoln Continental (1980)
- Ford LTD (1983-1986)
- Ford Crown Victoria (1992-2002)
- Ford Country Squire (1987-1991)
