MSD 8251 Part Description
Manufacturer
Product Description

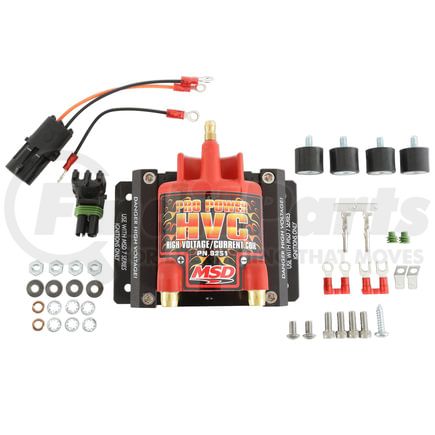

MSD Ignition Coil - Pro Power HVC - Red
Features & Benefits
- Spark plug style terminal and threaded brass primary studs
- No CARB Exemption Order Number
- 85:1 turns ratio and lower primary resistance produce high voltage output
- Designed for racing applications with an MSD 7 Series Ignition Control
- Supplied with rubber shock mounts
- Windings are encased in red epoxy and secured with extruded brackets
- Efficient E-core winding design produces more voltage and current
MSD 8251 Specifications
Product Attributes
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Emission Code | 4 |
| Inductance (mH) | 1 |
| Maximum Voltage | 45,000 |
| Part Type | Ignition Coil |
| Peak Current | 1.1 68 |
| Primary Resistance | 0.04 82 |
| Product Type | Ignition Coils |
| Secondary Resistance | 86 82 |
| Spark Duration | 0.15 MESC |
| Sub Category | Ignition Coil |
| Turns Ratio | 3.54 |
| Type | Drag Race / Long Duration Use |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | N/A |
Additional Information
| Original Supplier | US |
| Warranty Special | Manufacturer's Limited 1 Year Warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| NAFTA Preference Criterion Code | B |
| UPC | 00085132082513 |
