MSD 6560 Part Description
Manufacturer
Product Description

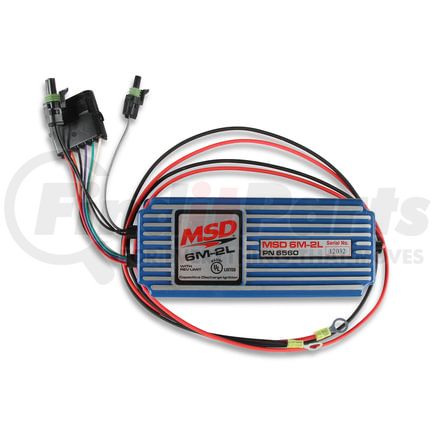

MSD 6M-2L Marine Certified Ignition with Rev Limit
Features & Benefits
- MSD's popular 6M-2 with a built-in rev-limiter
- Multiple sparks improve starting, throttle response and idle quality
- Weathertight connectors protect wiring from water and chemicals
- 1 Amp Per 1,000 RPM
- 12-18 Volts, Negative Ground
- 15,000 RPM with 14.4 Volts
- Circuitry is potted for a weather-proof housing
MSD 6560 Specifications
Product Attributes
| Brand | MSD |
| Category | Ignition |
| Color | Blue |
| Connector Gender | Male Female |
| Connector Quantity | 3 |
| Current Draw | 1000 RPM |
| Emission Code | 3 |
| Grade Type | Performance |
| Height | 2.25 IN |
| Ignition Type | Performance |
| Length | 8 IN |
| Maximum RPM | 15,000 RPM |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 460-480 |
| Product Type | Ignition Box |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 105-115 |
| Spark Series Duration | 20 Degree Crankshaft Rotation |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 11 |
| Voltage Required | 12-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3.5 lbs.,8L x 3.5W x 2.25H |
| Width | 3.5 IN |
Additional Information
| Original Supplier | US |
| Warranty Special | Manufacturer's Limited 1 Year Warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511804000 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| NAFTA Preference Criterion Code | B |
| UPC | 00085132065608 |
