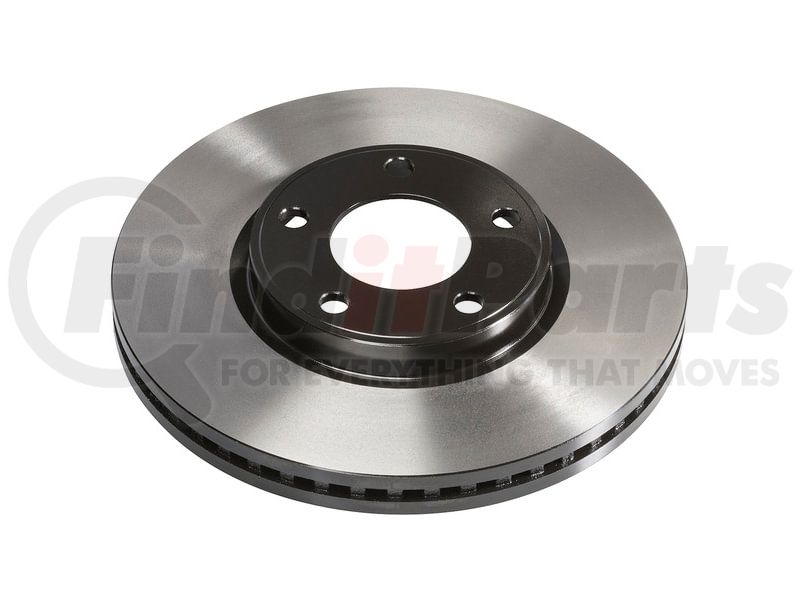

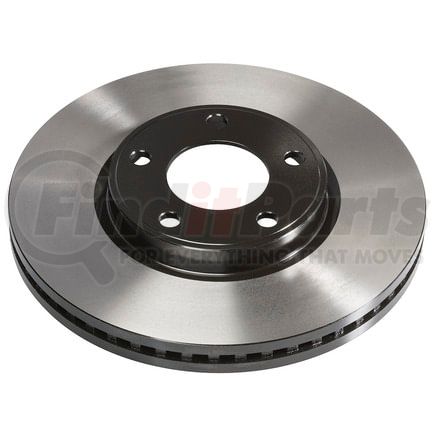

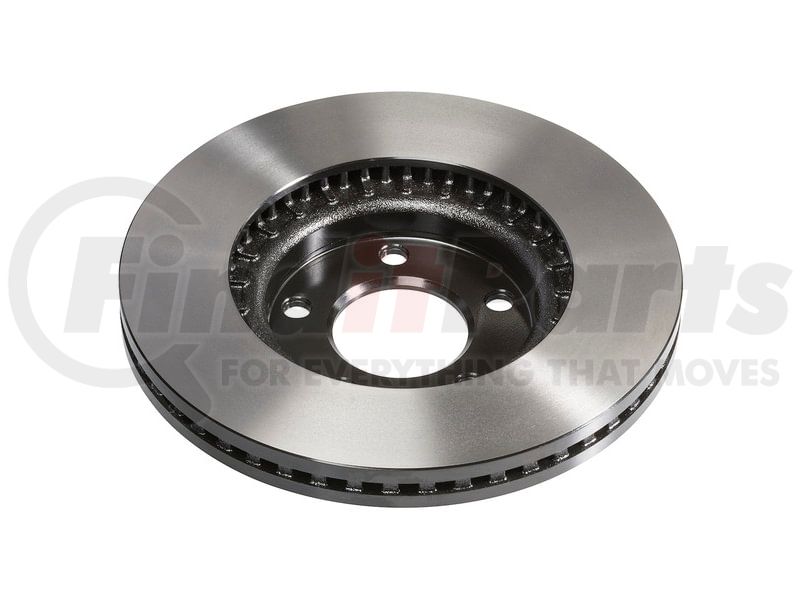

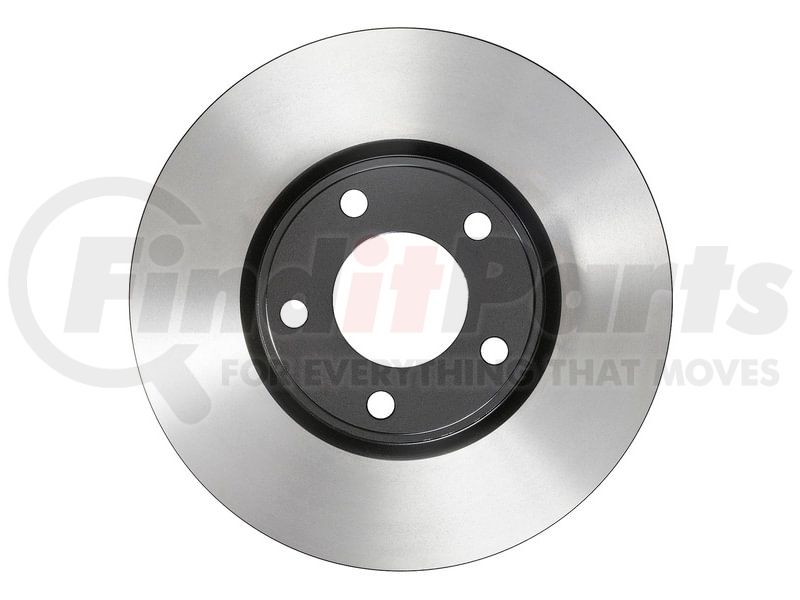

(888) 312-8812 Login SignupWAGNER BD126429E Wagner Brake BD126429E Disc Brake Rotor
Tap to view 2 more
MSRP: $115.74
$7449
Save $41.25
Limited availability at this price!
In Stock
Get it by Friday, Aug 21
WAGNER BD126429E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2007-2009 Ford Edge (Front) (Drive: FWD / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 296mm Diameter Rotor); 2007-2009 Lincoln MKX (Front) (Drive: FWD / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 296mm Diameter Rotor); 2007-2012 Mazda CX-7 (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 296mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126429E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.634 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 1.898 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 28.0 MM |
| Height | 48.2 MM |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 295.5 MM |
| Overall Height | 48.2 MM |
| Overall Height | 1.898 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536944683 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126429E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2496, 18A2496A, 18A2496AC |
| Aimco | 54155 |
| Autospecialty | JBR1314 |
| Bosch | 20010489, 34010910 |
| BrakeBest Select Drum/Rotor | 680545RGS, 680545PRM |
| CENTRIC | 120.45076 |
| Carquest Wearever | YH145701 |
| Centric Parts | 120.45076, 120.61092, 121.61092, 12045076, 12061092, 12161092, 121.45076, 120.45076CRY, 320.45076F |
| DuraGo | BR900296, BR900296-01, BR900296-02, BR900350, BR900350-01, BR900350-02 |
| Duralast | 42254 |
| Dynamic Friction Company | 604-54091, 600-80066, 604-80066, 600-54091 |
| FRITEC | FR08111 |
| Ford | 7T4Z1125B, 7U2Z1V125DC |
| Mazda | L2063325X, L2063325XA, L2143325X |
| NAPA BRAKES | 880545CR, 48880545, 248880545 |
| PowerStop | JBR1314EVC, JBR1314, AR8192 |
| Pro-Series | C08043, PS42254, C26429, PS44654 |
| RAYBESTOS | 680545, 680545R |
| Raybestos Brakes | 680545, 680545R, 980524, 980524R, 680545FZN, 980524FZN |
| Winhere | 6620789 |
| Worldparts Synergy | WS1154155, WS1231460 |
WAGNER BD126429E Fits Vehicles
- Lincoln MKX (2007-2009)
- Ford Edge (2007-2009)
- Mazda CX-7 (2007-2012)
WAGNER BD126429E Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER BD126429E Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
WAGNER BD126429E Questions & Answers
No questions yet
Be the first to ask a question about this product!
