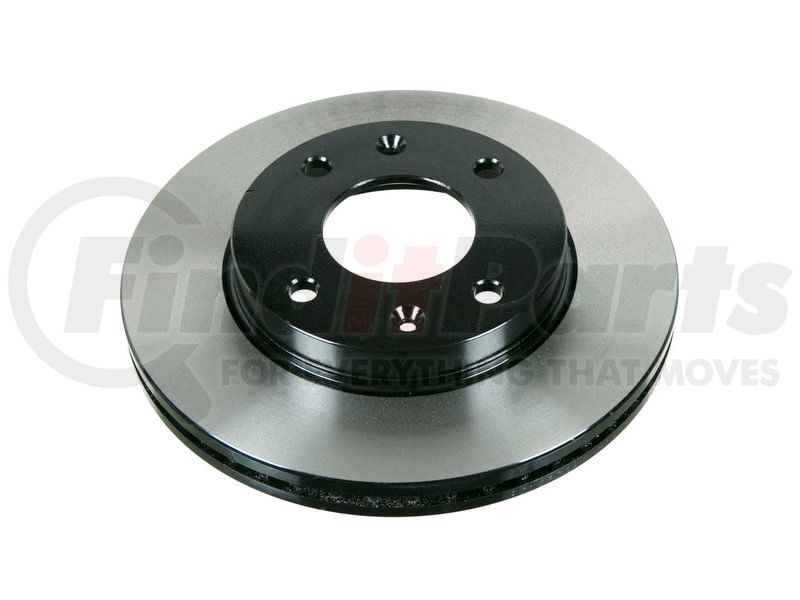

(888) 312-8812 Login SignupWAGNER BD125798E Wagner Brake BD125798E Disc Brake Rotor
Tap to view 2 more
MSRP: $57.18
$4399
Save $13.19
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 29
WAGNER BD125798E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2001-2006 Hyundai Elantra (Front) (Qualifier: 4 Stud Wheel, with 257 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2003-2004 Mitsubishi Space Star (Front) (Qualifier: 4 Stud Wheel, with 257 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125798E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 24.0 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 257.0 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 46.4 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 0.944 IN |
| Height | 1.826 in |
| Stud/Lug Hole Quantity | 4 |
| Outside Diameter | 10.110 IN |
| Overall Height | 46.4 MM |
| Overall Height | 1.826 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536942009 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125798E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1490, 18A1490A, 18A1490AC |
| ADVICS | R6F287U |
| Aimco | 31320 |
| Autospecialty | JBR722 |
| Bendix | 145576 |
| Bosch | 28010803 |
| BrakeBest Select Drum/Rotor | 980112RGS |
| Brembo | 25364 |
| CENTRIC | 120.46039 |
| Carquest | 31320 |
| Carquest Platinum Plus Coated Rotors | YH141709C |
| Carquest Wearever | YH141709 |
| Centric Parts | 120.46039, 121.46039, 12046039, 12146039, 320.46039F |
| Duralast | 31320, 31320DG |
| Hyundai | 517122D300, 517122D310, 517122D370 |
| NAPA BRAKES | 880112CR, 48880112, 248880112 |
| PowerStop | JBR722, JBR722EVC |
| Pro-Series | PS31320, C25798 |
| RAYBESTOS | 980112 |
| Raybestos Brakes | 980112, 980112FZN, 980112R |
| Worldparts Synergy | WS1331320 |
WAGNER BD125798E Fits Vehicles
- Mitsubishi Space Star (2003-2004)
- Hyundai Elantra (2001-2006)
