(888) 312-8812 Login SignupWAGNER BD125783E Wagner Brake BD125783E Disc Brake Rotor
Tap to view 2 more
MSRP: $51.24
$3499
Save $16.25
Limited availability at this price!
In Stock
Get it by Tuesday, Jul 28
WAGNER BD125783E Part Description
Manufacturer
Product Description

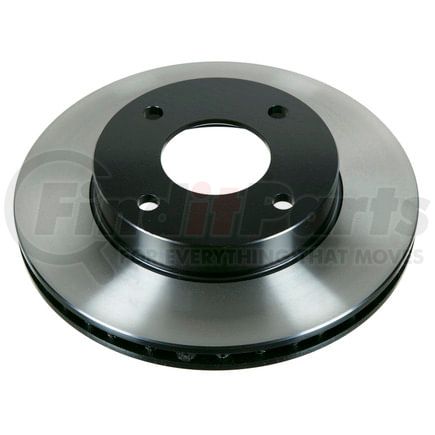

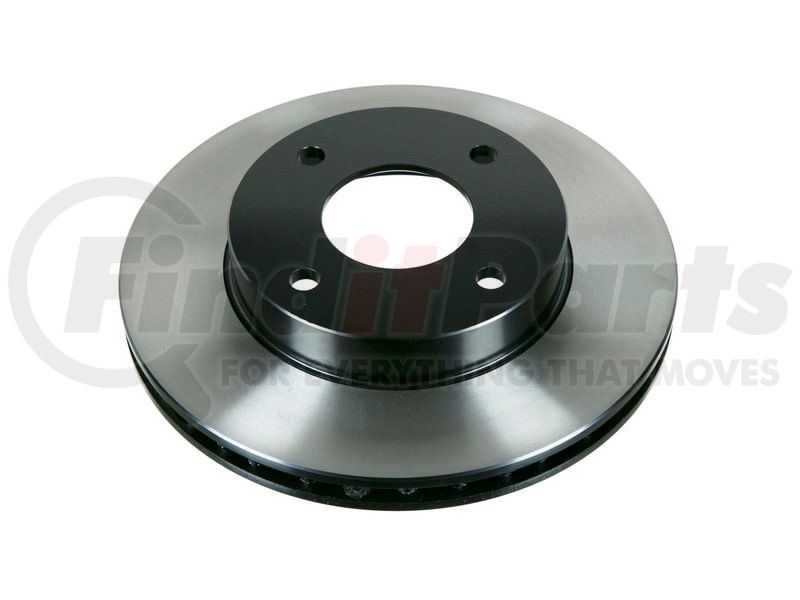

Disc Brake Rotor
Application Summary
2011-2012 Renault Scala (Front) (Qualifier: 4 Stud Wheel, with 257 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2000-2006 Nissan Sentra (Front) (Liter: 1.8 & Engine(cc): 1769 & Cylinder: 4 & Block: L & Bore(in): 3.15 & Bore(mm): 80.0 & Stroke(in): 3.46 & Stroke(mm): 88.0 / Qualifier: 4 Stud Wheel, with 257 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125783E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 22.0 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 256.7 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 49.0 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 0.866 IN |
| Outside Diameter | 10.100 IN |
| Height | 1.929 in |
| Stud/Lug Hole Quantity | 4 |
| Overall Height | 1.929 IN |
| Overall Height | 49.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536941477 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125783E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1361, 18A361A, 18A361AC, 18A1361A |
| Aimco | 31307 |
| Autospecialty | JBR503 |
| Bendix | 145363 |
| Bosch | 40011036 |
| BrakeBest Select Drum/Rotor | 980075RGS |
| Brembo | 25511 |
| CENTRIC | 120.42041 |
| Carquest | 31307 |
| Carquest Platinum Plus Coated Rotors | YH141656C |
| Carquest Wearever | YH141656 |
| Centric Parts | 120.42041, 121.42041, 12042041, 12142041, 120.42041CRY, 320.42041F |
| Datsun/Nissan | 40206-4Z002, 402064M401, 402064M402, 402064Z001, 402064Z810, 402064Z002 |
| DuraGo | BR31307, BR31307-01, BR31307-02 |
| Duralast | 31307 |
| INFINITI | 402064Z810 |
| NAPA | 48880075, 880075 |
| NAPA BRAKES | 880075CR, 48880075, 248880075 |
| PowerStop | JBR503, JBR503EVC |
| Pro-Series | C25783 |
| RAYBESTOS | 980075R, 980075 |
| Raybestos Brakes | 980075, 980075R, 980075FZN |
| Worldparts Synergy | WS1231307 |
WAGNER BD125783E Fits Vehicles
- Renault Scala (2011-2012)
- Nissan Sentra (2000-2006)
