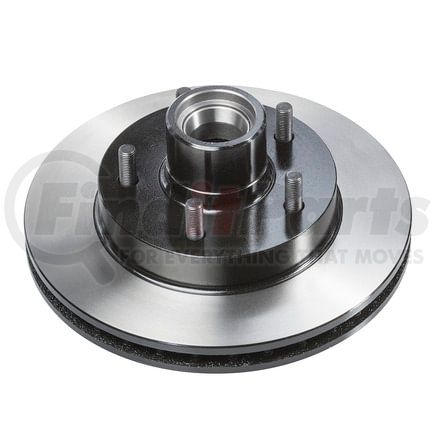

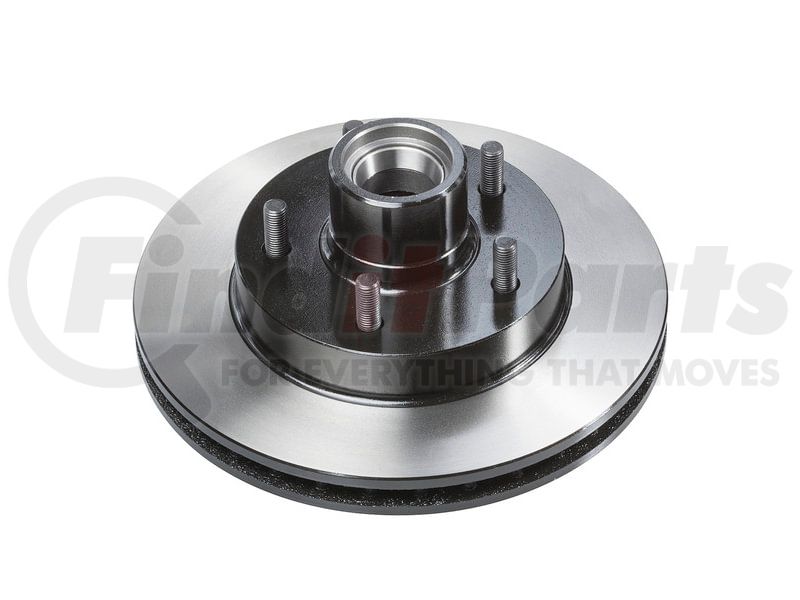

(888) 312-8812 Login SignupWAGNER BD125172E Wagner BD125172E Brake Hub & Rotor
Tap to view 2 more
$12449
Limited availability at this price!
In Stock
Get as soon as Monday, Nov 9
WAGNER BD125172E Part Description
Manufacturer
Product Description
Brake Rotor
Application Summary
Chevrolet Blazer (F) 97-95; S10 (F) 03-94; S10 Blazer (F) 93-91; GMC Jimmy (F) 97-92; S15 Jimmy (F) 91; Sonoma (F) 03-94; Isuzu Hombre (F) 00-96
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield® protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125172E Specifications
Product Attributes
| Nominal Thickness | 1.034 IN |
| Nominal Thickness | 26.2 MM |
| Rust Resistant Coating | No |
| Outside Diameter | 10.491 IN |
| Outside Diameter | 266.4 MM |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 266.4 MM |
| Outside Diameter | 10.491 IN |
| Overall Height | 109.3 MM |
| Overall Height | 4.303 IN |
| Surface Type | Smooth |
| Construction | Full Cast |
| Material | Cast Iron |
| Part Description | Disc Brake Rotor |
| ABS Tone Ring Included | Yes |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Mounting Bolt Hole Circle Diameter | 120.6 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8302303060 |
| Remanufactured Part | N |
| UPC | 00008536949084 |
| VMRS Code | 018001040 |
| UNSPSC | 25171715 |
WAGNER BD125172E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A405, 18A878, 18A878AC, 18A878A |
| Aimco | 5575, 31254 |
| Autospecialty | AR8617 |
| Bendix | 145241, 141631 |
| Bosch | 25010552 |
| Brembo | 27039, 27243 |
| CENTRIC | 120.66017 |
| Carquest | 31254, YH145241, 5575 |
| Centric Parts | 120.66017, 121.66017, 320.66017F, 125.66017, 120.66017CRY |
| Duralast | 31254DG, 31254DL |
| Dynamic Friction Company | 604-48016, 600-48016 |
| General Motors | 15602574, 15725351, 18060217, 8156025740, 8157253510, 8191526990, 19202728 |
| Isuzu | 19152699, 8156025740, 8157253510, 8191526990, 8192027280 |
| PowerStop | AR8617, AR8617EVC |
| RAYBESTOS | 56757 |
| Raybestos Brakes | 56757, 56757R, 56757FZN |
| Universal | 101750 |
