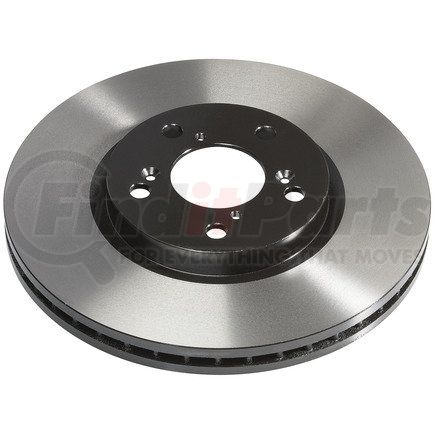

Disc Brake Rotor
2006-2014 Honda Ridgeline (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 320mm Diameter Rotor)
| Material | Cast Iron |
| Nominal Thickness | 1.098 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 12.580 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 47.1 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 27.8 MM |
| Outside Diameter | 319.5 MM |
| Height | 1.855 in |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 1.855 IN |
| Overall Height | 47.1 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 26.0 MM |
| Discard Thickness | 1.024 IN |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.0 MM |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Mounting Bolt Hole Diameter | 0.572 IN |
| Prop 65 Label (Yes/No) | No |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536948445 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
| Brand | Part Number |
|---|---|
| ACDelco | 18A2317, 18A2317SD, 18A2317A, 18A2317AC |
| Aimco | 31402 |
| Autospecialty | JBR984 |
| Bosch | 26010788 |
| BrakeBest Select Drum/Rotor | 980353RGS |
| CENTRIC | 120.40069 |
| Carquest Platinum Painted Rotors | YH145770P |
| Carquest Wearever | YH145770 |
| Centric Parts | 120.40069, 121.40069, 12040069, 12140069, 120.40069CRY, 320.40069F |
| DuraGo | BR900392, BR900392-01, BR900392-02 |
| Duralast | 44311 |
| Dynamic Friction Company | 604-59051, 600-59051 |
| Honda | 45251SJCA50 |
| NAPA | 48880353, 880353 |
| NAPA BRAKES | 880353CR, 48880353, 248880353 |
| PowerStop | JBR984, JBR984EVC |
| Pro-Series | PS44311, C26355 |
| Promax | 14-31402, 20-31402 |
| RAYBESTOS | 980353, 980353R |
| Raybestos Brakes | 980353, 980353R, 980353FZN, 980353R2, 980353PER |
| Winhere | UR004935 |
| Worldparts Synergy | WS1231402 |
