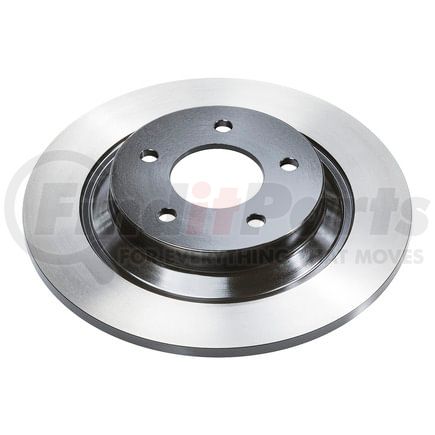

(888) 312-8812 Login SignupWAGNER BD126564E Wagner Brake BD126564E Disc Brake Rotor
Tap to view 2 more
MSRP: $64.83
$4049
Save $24.34
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 4
WAGNER BD126564E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2006-2015 Mazda 5 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 302mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126564E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.426 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.880 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 1.606 in |
| Part Description | Disc Brake Rotor |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 301.7 MM |
| Overall Height | 1.606 IN |
| Overall Height | 40.8 MM |
| Nominal Thickness | 10.8 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536949466 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126564E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2423A, 18A2423AC |
| Autospecialty | JBR1356 |
| Bosch | 34010911 |
| BrakeBest Select Drum/Rotor | 980472RGS |
| CENTRIC | 120.45065 |
| Carquest Platinum Painted Rotors | YH200371P |
| Carquest Platinum Plus Coated Rotors | YH200371C |
| Carquest Wearever | YH200371 |
| Centric Parts | 120.45065, 121.45065, 12045065, 12145065, 120.45065CRY, 320.45065F |
| DuraGo | BR900456, BR900456-01, BR900456-02 |
| Duralast | 77102 |
| Dynamic Friction Company | 604-80064, 600-80064 |
| Mazda | C26Y26251, C26Y26251A, C2Y326251A |
| NAPA BRAKES | 880472CR, 48880472, 248880472 |
| PowerStop | JBR1356, JBR1356EVC |
| Pro-Series | PS44679, C26564 |
| RAYBESTOS | 980472R, 980472 |
| Raybestos Brakes | 980472, 980472R, 980472FZN, 980472R2 |
| Winhere | UR002405 |
| Worldparts Synergy | WS1231435 |
WAGNER BD126564E Fits Vehicles
- Mazda 5 (2006-2010, 2012-2015)
