FRAM CH11784 Part Description
Manufacturer
Product Description

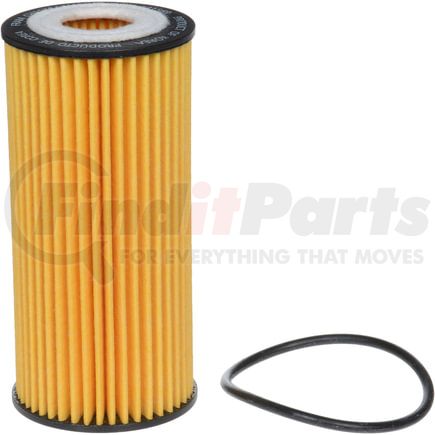

FRAM, CH11784, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines
Cartridge Oil Filter
FRAM CH11784 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.409 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.984 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.362 IN |
| O-ring Outside Diameter | 2.480 IN |
| O-ring Thickness | 0.118 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.087 in |
| Outer Diameter Top | 2.087 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 0.984 in |
| Torque Nut | No |
| Washable | No |
| Bottom Inside Diameter | 0.984 IN |
| Outside Diameter Top | 2.087 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100555366 |
| UNSPSC | 15121501 |
FRAM CH11784 Cross References
| Brand | Part Number |
|---|---|
| Carquest | 94024 |
| Carquest Premium Filters | 94024 |
| Champ | P1017, P1017XL |
| Coopers | FA6107ECO |
| DENSO | 150-3099 |
| Defense Filters | DL11784 |
| ECOGARD | X10260, S10260 |
| ECOGUARD | X10260 |
| EXXON/MOBIL OIL | M1C258A |
| FRAM Drive | FD11784 |
| FRAM Force | FF11784 |
| FRAM Synthetic Endurance | FE11784 |
| FRAM Titanium | FS11784 |
| FRAM Tough Guard | TG11784 |
| FRAM Ultra Synthetic | XG11784 |
| FVP | G0024 |
| Factory Motor Parts | G0024 |
| Filtron | OE688/2 |
| Firestone | P1017 |
| GMB | 699-1021 |
| Hastings | LF722 |
| Hengst | E358HD246 |
| K&N | PS-7038 |
| Knecht | OX835D |
| LUBER-FINER | P1017, P1078 |
| MAHLE | OX 835D, OX 835D ECO, OX 1217D |
| MANN-HUMMEL FILTERS | HU6013Z, HU6002Z |
| Mann-Filter | HU 6002 Z, HU6002Z, HU 6013 Z |
| MicroGard | MGL10024 |
| MicroGard Select | MSL10396 |
| Mighty Distributing System | M9001, MX9001 |
| Mobil | 91017, P1017 |
| MotoMaster | MCH11784 |
| NAPA | 100024 |
| NAPA Gold Filters | 100024 |
| NAPA ProSelect Filters | 2100024 |
| PREMIUM GUARD | PG8161EX |
| PUREPRO | PL8161 |
| PUROLATOR | TL28161, TL21478, PL21478 |
| Parts Master | WL610024 |
| Pennzoil | PZ-185, PZ185 |
| Performax | PO-185 |
| Premium Guard Extended Life | PG8161EX |
| Prime Guard Filters - Archived | POF8161, POF8191 |
| PureZone | 8-10024 |
| Purflux | L980 |
| Purolator | L28161 |
| Purolator BOSS | PBL28161 |
| STP | S11784 |
| STP Filters | S11784, S11784XL |
| Service Champ | CF8161 |
| Valvoline | VO-117 |
| Volkswagen | 06K 115 466, 06K 115 562, 06L 115 466, 06L 115 562, 06L 115 562B |
| WIX FILTERS | WL10024, WL10396, WL10396XP |
| Warner | WP1017 |
| Warner Filters | WP1017 |
| Wix | WL10024 |
FRAM CH11784 Fits Vehicles
- Suzuki Aerio (2002)
- Porsche Macan (2017-2025)
- Audi A7 Sportback (2021-2023)
- Audi Q5 Sportback (2021-2025)
- Volkswagen Atlas Cross Sport (2020-2026)
- Volkswagen Atlas (2018-2026)
- Audi TTS Quattro (2016-2023)
- Audi Q3 (2019-2025)
- Audi Q5 PHEV (2020-2025)
- Audi Q5 (2018-2025)
- Volkswagen Tiguan (2018-2025)
- Audi A4 Quattro (2017-2025)
- Audi S3 (2015-2020, 2022-2026)
- Audi TT Quattro (2016-2023)
- Volkswagen Arteon (2019-2023)
- Audi A6 (2016-2018)
- Audi A5 Sportback (2018-2025)
- Volkswagen Golf R (2015-2019, 2022-2026)
- Audi A5 Quattro (2018-2025)
- Audi Q7 (2017-2026)
- Audi A4 allroad (2017-2025)
- Volkswagen Golf Alltrack (2017-2019)
- Audi A4 (2017-2020)
- Volkswagen Golf SportWagen (2015-2019)
- Volkswagen Golf (2015-2018)
- Audi A6 Quattro (2016-2025)
- Audi A3 Quattro (2015-2020, 2022-2026)
- Volkswagen Jetta (2014-2026)
- Volkswagen GTI (2015-2026)
- Audi A3 (2015-2020, 2022-2025)
- Volkswagen Passat (2014-2022)
- Volkswagen Beetle (2013-2019)
