LEECE NEVILLE part description

Product Specifications

Spec Value

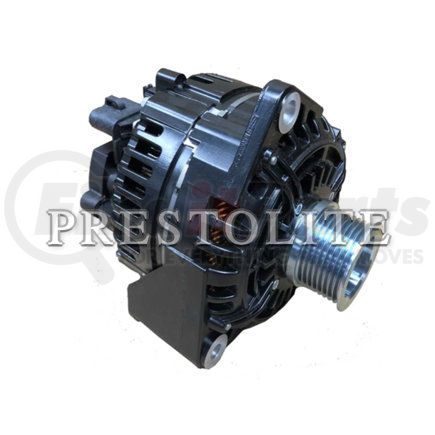

Item number AVI150S1121HP
Sales number A150S121
Series number AVI147
System voltage 24
Output 180
Mounting style SPOOL
Dimensions in MILLIMETERS
Rotation CLOCKWISE
Housing coating PAINTED
UL Approved No
Spool length 80MM
Positive stud size M8
Negative stud size WIRING HARNESS
Rectifier location INTEGRAL
Shaft diameter 17mm
Excitation type
Regulator location
Regulator number
Diode trio No
Pulley included No
Lamp driver No
Adjustable regulator No
Remote sense No
Smart check No
Batteryless No

Similar Product

We have another model that is equivalent to AVI150S1121HP
AVI150S1104HP
Volts 24
Amp 190

A division of Prestolite Electric Incorporated, Leece-Neville® is a well-known supplier of starters, alternators, and other electrical equipment for transportation, industrial, and military applications. This brand shares the same "Easy to do Business" philosophy with Prestolite and the same manufacturing and distribution centers in America, Europe, Canada, China, Hong Kong, and Mexico. With an industry history that dates back to 1919, Leece-Neville has its glory days in the production of electrical starters, voltage regulators, and generators for trucks, airplanes, as well as industrial and marine equipment during the World War II. In July 1987, Leece-Neville was acquired by Prestolite Electric, which widened its reach to the international market and made the Leece-Neville name globally recognized.
