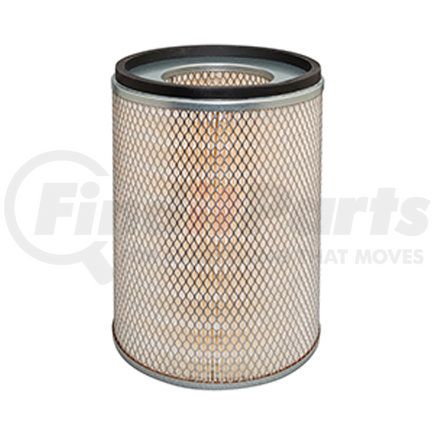

(888) 312-8812 Login SignupBALDWIN PA1615 Engine Air Filter - Axial Seal Element used for Caterpillar Equipment
$6799
Limited availability at this price!
In Stock
Get it by Friday, Sep 4
BALDWIN PA1615 Part Description
Manufacturer
Product Description
Outer Air Element
Application Summary
Cat Equip
Outer Air Element
BALDWIN PA1615 Specifications
Product Attributes
| Inside Diameter 1 (mm) | 123 |
| Use With | {PA1647}, {PA2719}, {PA2736} |
| Replaces | Caterpillar 4M8047, 8N5389 |
| Remark 2 | One End |
| Related to | {LL1615} (Long-Life Media Version);{PA1615XP} (Extreme Performance Nano Version) |
| Outside Diameter 1 (mm) | 235 |
| Outside Diameter 1 | 9.25 |
| Inside Diameter 1 | 4.84375 |
| Height (mm) | 317.5 |
| Height | 12.5 |
| Fits | Caterpillar Equipment |
| Attached Gasket | [1] Attached |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421310000 |
| UPC | 00791440012370 |
BALDWIN PA1615 Cross References
| Brand | Part Number |
|---|---|
| 8N5389, BLDPA1615 | |
| ACDELCO | PC335, A207C |
| AIR REFINER | ARM912 |
| ALCO FILTERS | MD7076 |
| AMERICAN MOTORS CORP. | CA1773 |
| AMERICAN PARTS | 93047, 294 |
| AP FILTERS | AP3036A, AP3036 |
| AP LOCKHEED | LK3036, AP3036A, AP3036 |
| BALDWIN FILTERS | PA1615, LL1615 |
| BIG A FILTER | 93047, 294 |
| BOWES | LAF47 |
| CANADIAN FILTER CO. | CFM76 |
| CARQUEST | 87047 |
| CATERPILLAR | 4M8047, 5M0957, 4M383, 4M0383, 3P0085, 3I0849, 2Y8092, 2S3087, 2S1289, 2P3224, 1W0217, 1W7364, 9M1884, 8N5389, 8M8047, 7W5389E, 7W5389, 7W5384, 7S2513, 7E5375, 7E5374, 7C9756, 7C6376, 7C4428, 5S9004, 5M957 |
| CHAMPION LABORATORIES | LAF47, AF47 |
| CLARCOR UK | FMA0933 |
| CLARK EQUIPMENT | 621128 |
| CLEAN FILTERS | MA501 |
| CO-OP | PMA4M8047, AP4M8047 |
| CONTINENTAL AG | PCA224 |
| COOPERS | L95423, AZA602, AEM2686 |
| CROSLAND | 9553 |
| CUMMINS | 253333 |
| CYCLONE | PMA4M8047 |
| DELUXE | 599AIR, 599, AF599 |
| DEUTZ | 3366456, 1522242009 |
| DIAMOND | DX610 |
| DONALDSON | SMP181103, P901524, P18709, P181103, P150907, P138751, P018709, EGB110025, EGB110024, EGB110023, EGB110022, EGB110012, EGB110011 |
| DONIT | 4930501 |
| EUROFILTER | 74 |
| FIAAM | FLI6194, FL6194, FL16194 |
| FILGA | FF821 |
| FILT | A2221 |
| FILTER CONTROL LTD. | FCL2208 |
| FILTER MEX | FMA224 |
| FLEETGUARD | AF344, AF344M |
| FLEETLIFE | FA4M8047 |
| FLEETRITE | AFR8344, AFR8344M |
| FLUXFILTER | AC224 |
| FRAM | CA224 |
| GIESSE | AHI1045 |
| GIF FILTER | GA481 |
| GLOBAL FILTERS | 61615 |
| GM GENERAL MOTORS | 9974668, 6421538 |
| GONHER | GA8047M, GA8047 |
| GOULD | AP4M8047 |
| GPC | FC273 |
| GRAINGER | 2NUE9, 4XAL6 |
| GREYFRIARS | 1253A |
| GUARDIAN FILTER CO. | G4M8047 |
| GUD FILTERS | L95423, ADG546 |
| HASTINGS | AF104 |
| HEAVY DUTY AIR | HDA80471, A80471 |
| HENGST | E584L |
| INDUCONTROL | AR224 |
| JIMCO | JAE88008 |
| JURA (HIFI) | SA10294 |
| KHD (KLOCKNER, HUMBOLT, DEUTZ) | 1522242009, 3366456 |
| KIRKALDIE ENG. | KA122 |
| KNECHT | LX116, AG141 |
| KRALINATOR | LA76 |
| L.B. FILTER | A653 |
| LAUTRETTE | EL3065 |
| LUBER-FINER | LAF47 |
| MAHLE | LX116 |
| MANN+HUMMEL | C244441, C23326, C24444, C24441 |
| MANN-HUMMEL FILTERS | C24444/1 |
| MITSUBISHI | 4574070510 |
| MOTORCRAFT | FA524 |
| NAPA GOLD | 2047 |
| NELSON | 70261N |
| NELSON-WINSLOW | WM912A |
| NSN NATIONAL STOCK NUMBER | 2940008588178 |
| NU-TECH | S1132, N1131 |
| O&K ORENSTEIN & KOPPEL | 101015 |
| PBR | AI3208 |
| PERRY | PA599 |
| PREMIUM GUARD | HA40959 |
| PURFLUX | A922 |
| PUROLATOR | AF8047, A58047 |
| QIF AIR | ACA224 |
| QUAKER STATE | QSA224 |
| RADIALFIL | AP8047 |
| REFILCO | AF2047 |
| REYTOR | IT912 |
| ROMAN | R8047 |
| RYCO | HDA5133 |
| SAKURA | A5507S, A5507, A4406 |
| SAVARA | SA026, 92702617, 92302617, 92302611, 923026, 92040117, 92040111 |
| SF-FILTER / SCHUPP | SL8929 |
| SOFIMA | S2350A |
| SOPARIS | FDA3116 |
| STAY READY | SRPAM912, SRPA912 |
| SURE FILTER TECHNOLOGY | SFA8047SET, SFA8047P |
| TECFIL | AR8047, AP8047 |
| TECNOCAR | A532 |
| TEHO FILTER | IIM202 |
| TRU-AIR | TA7364, T8047 |
| UFI FILTERS | 2792200 |
| UNITED AIR CLEANER | U4M383 |
| UNITED ENGINE LIFE | U4M383 |
| VIRGIS FILTER | CH12208 |
| WESTERN TOOL CO. | WA2038 |
| WGB | SA128 |
| WIX | DT8047, 42047 |
| WIX FILTERS | WIX FILTERS, 42047NP, 42047 |
| WOODGATE | WGA122 |
BALDWIN PA1615 Customer Reviews
No reviews yet
Be the first to review this product!
BALDWIN PA1615 Manufacturer Information
Baldwin® is a world-renowned leader in the engine mobile filtration. A brand of Parker Engine Mobile Aftermarket Division (E.M.A.M.), Baldwin Filters provides high-quality filtration products and services for engines and mobile equipment. Since 1936, J.A. Baldwin, the founder of Baldwin Filtration, has recognized the importance of a highly efficient mobile filtration system. It is what inspired him to design an improved lube filter and set off its production in Wisconsin. Currently, Baldwin offers outstanding product quality, a vast distribution network, and one of the industry's most comprehensive product lines. Baldwin's broad range of filtration products and technologies provides customers with a one-stop source for all their engine and mobile filtration needs.
