Replaces AL430611,Patented FFABS Valve with integral Spring Brake Control function.
Features & Benefits
Patented and comes with integral spring brake control function
Guarantees easy serviceability with its pre-installed reservoir nipple with swivel and lock-nut feature
Fitted with filters in both the control and supply ports
With production part number engraved on the metal tag

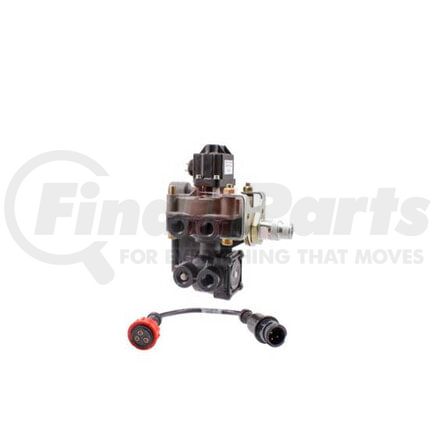

Haldex Full-Function ABS (FFABS) Valve
Crafted to the industry's highest standards for performance, reliability, and safety, the Haldex Full-Function ABS valve provides you with dependable performance at all times. This component expedites service replacement with its pre-installed combination nipple that works for two ports with different sizes.
Product Attributes
Control Port Diameter
3/8 in.
Delivery Port Diameter
4 @ 3/8 in.
Freight Class
70
Opening Pressure
4.0 PSI
Reservoir Port Diameter
1 @ 1/2 in., 1 @ 3/4 in. (Nipple)
Spring Brake Port Diameter
4 @ 3/8 in.
Supply Port Diameter
3/8 in.
Valve Type
4-Port ABS Valve
Voltage
12V
Additional Information
Country of Origin (Primary)
MX
Harmonized Tariff Code (Schedule B)
8481200060
Harmonized Tariff Code (HTS)
8481200060
Remanufactured Part
N
Warranty Distance
100000
Warranty Distance UOM
MI
Warranty Special
36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX AL430614 Cross Reference
We have 21 alternatives for the AL430614 by HALDEX:
