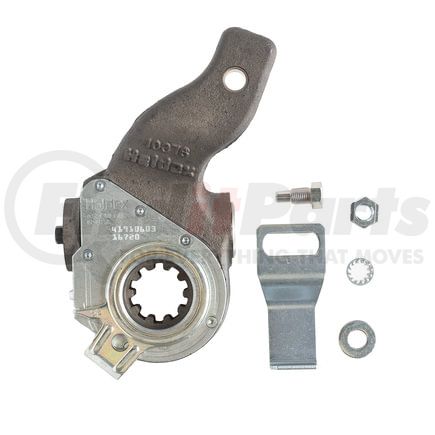

HALDEX 30010007 Air Brake Automatic Slack Adjuster - 1-1/2"-10 Spline Diameter, 5-1/2" Arm, 1-1/2" Offset

MSRP: $381.95

$238.99

Save $142.96

Limited availability at this price!

In Stock

Get it by Friday, Dec 26
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

HALDEX 30010007 Part Description

Manufacturer

HALDEX

Product Description

Auto Brake Adjuster (ABA), Transit/Severe Duty, Arm Length 5-1/2" Offset 1-1/2"

Application Summary

TRANSIT AA1. Opposite Side Brake Adjuster: 30010008

Features & Benefits

  • Covers more applications than competing adjusters in the market
  • Compatible with clevises from major OE and aftermarket brands
  • Easily accessible hex nut for easy adjustment and maintenance
  • Specially-crafted wormshaft provides added resistance against fatigue
  • Heavy duty gaskets and O-rings seal out moisture and contaminants
  • Fully-sealed design protects linkages against the elements for added durability
  • Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
  • Heat-treated steel alloy internal gears provide increased strength and wear resistance

Haldex Transit ABA Service Kit

Improve your ride’s stopping performance with the Haldex transit ABA service kit. This helps improve handling in various driving conditions and is heat-treated for added strength and corrosion resistance.

HALDEX 30010007 Specifications

Product Attributes

Anchor Bracket Style Spider
Arm Hole Diameter 1/2 in.
Arm Length 5-1/2 in.
Body Angle 22.5 DD
Freight Class 70
Grease Fitting Location 180 DD
Grease Fitting Type Straight
Location Rear
Offset 1.5 in.
Pin Diameter 1/2 in.
Recommended Bracket Number 42710548
Spline Diameter 1-1/2 in.
Spline Quantity 10

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8708305090
Harmonized Tariff Code (HTS) 8708305090
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf
Warranty Time 12
Warranty Time UOM MO
UPC 00767653144283
VMRS Code 013002035

HALDEX 30010007 Part Interchanges

Brand Part Number
N/A 300-10007, 4K-3-4, A13275S617, 4W8540, A1-3275-S-617, 641052, 056810, 53-19533-003, P-3980C, U55 30010007, 25-0650-00332, 4L-3-23
Haldex 300-10007, 300-10089, 419-10202, 419-10603
MCI 4K-3-4, 4L-3-13, 4L-3-23, N8885903
Meritor A13275S617, A23275S617
Mei 4W8540
Rockwell International A1-3275-S-617, A2-3275-S-617
Prevost 641052, N8885903
New Flyer 056810, 8111664
Gillig 53-19533-003, 53-35511-000N, 82-15991
Neoplan P-3980C
Ryder U55 30010007
North American Bus Industries 25-0650-00332, 25-0650-00513, 436.02.3103.700, 4360231033700
Novabus 4L-3-23
MERITOR A13275S617, A23275S617
ROCKWELL A1-3275-S-617, A2-3275-S-617
PREVOST 641052, N8885903
NEW FLYER 056810, 8111664
GILLIG 53-19533-003, 53-35511-000N, 82-15991
RYDER FLEET PROD. U55 30010007

HALDEX 30010007 Cross References

We have 5 alternatives for the 30010007 by HALDEX:

HALDEX 30010007 Customer Reviews

No reviews yet

Be the first to review this product!

HALDEX 30010007 Manufacturer Information

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
