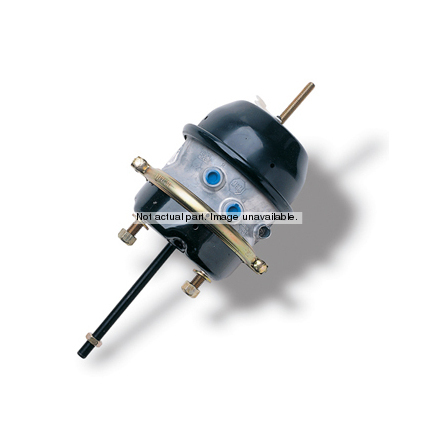

3429051 by MGM BRAKES

Brake Chamber, Series 3429, Model Tr2430l, 2.50 In. Stroke

Please fill out our Stock Check form to order this part.
Qualifies towards free ups ground shipping

This item qualifies toward free domestic UPS Ground shipping when ordered online. Only orders with an item total over $100.00 are eligible for this offer. This offer not valid for freight, LTL, or any express shipping or international orders. See details.

Usually ships within 24 hours.
Note: To ship same day, orders must be placed by 2:00pm EST during the business week.

MGM BRAKES Part Description

Specifications

Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.570
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50

Service Size: 24
Spring Size: 30

Features & Benefits
  • Tamper Resistant Design
  • Molded Nitrile Rubber Push-Rod Air Seal
  • Center Hole Shield
  • Externally Stored Release Bolt
  • Epoxy-Coated Head, Non-Pressure Chamber and Lower Push-Rod Assembly
  • Epoxy-Coated Return Spring
  • 360 Aluminum Center Case
  • "Long Life" Power Spring
  • Weatherseal Plug
  • Heavy-Duty Steel Non-Pressure Chamber (8-Gauge Standard on Type 3030 & 3060 Aftermarket Models) (6-Gauge Standard on Type 36 Models)
  • Stroke Alert
  • Polymer Push-Rod Guides
  • Heavy-Duty Nylon Reinforced Diaphragms
  • Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
  • External Breather Tube
  • Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only
Model: TR2430L
Technical Data
Stroke 2.50" (63.5 mm)
Weight lb (kg) Combination 18.2 lb (8.3 kg)
Weight lb (kg) Single 11.3 lb (5.1 kg)
A 9.04" (229.6 mm)
B 6.91" (175.5 mm)
C 7.38" (187.5 mm)
D 8.21" (208.5 mm)
E 4.75" (120.7 mm)
F 5/8" - 11 UNC
G 5/8" - 18 UNF
Inlets 3/8" - 18 NPTF
X - Min. (aftermarket unit only) 8.00" (203.2 mm)
Replacement Parts
1 Kit -NP Chamber (a) 9015161
2 Kit -Nuts & Bolts 9003001
3 Clamp Band Assembly 8216025
4 Diaphragm 8017141
5 Kit -Push-Rod Assembly (a) SAE 9064002
5a Kit -Push-Rod Assembly (a) METRIC 9064016
6 ReturnSpring 8068002
7 Kit -Center Hole Shield 9065002
8 NP Chamber Assembly (a) 8215105
9 Kit -Nuts & Washers SAE 9002001
9a Kit -Nuts & washers METRIC 9002002
10 Hex Nut -Yoke SAE 8130004
10a Hex Nut -Yoke METRIC 8130016
11 Kit -Weatherseal Plug 9019005
12 Kit -Release Bolt 9007003
13 Kit -Piggyback Plus SAE 3402908
*NOTE: (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.
