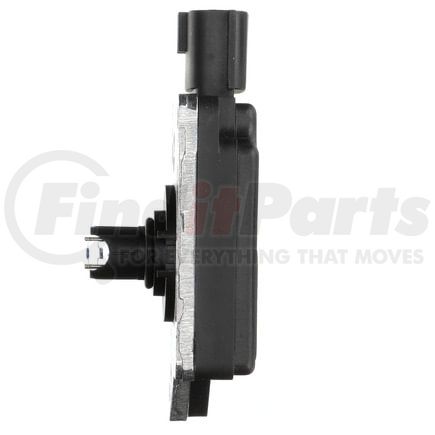

(888) 312-8812 Login SignupDELPHI AF10459 Mass Air Flow Sensor
$13999
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Dec 23
DELPHI AF10459 Part Description
DELPHI AF10459 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Standard Replacement |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 91 MM |
| Sensor Casing Width | 52 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 75.80 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 16 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.5 IN |
| Sensor Casing Width | 2.0 IN |
| Bolt Hole Center To Bolt Hole Center | 2.90 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604286678 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10459 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 157-0246 |
| Spectra Premium | MA362S |
| Hitachi Automotive | AFH50-15AM, MAF0004 |
| BWD | 29040 |
| Datsun/Nissan | 22680-1B000 |
| CARDONE New | 86-9589 |
| CARDONE Reman | 74-9589 |
| Standard Motor Products | MF0896 |
| NAPA Reman Computers | MAF69589, XTP49589 |
| Blue Streak Electronics New | MF0896N |
| Motorcraft | AFLS-153 |
| Ford | F7XZ 12B579-AARM |
| N/A | MQ7314, DL-3094, 245-1020, MAS0369 |
DELPHI AF10459 Fits Vehicles
- Nissan Quest (1996-1998)
- Mercury Villager (1996-1998)
