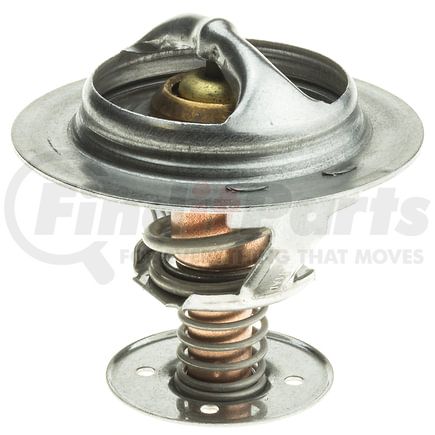

MOTORAD 655-180 Thermostat-180 Degrees

★★★★★ (0)
Motorad 655-180 Engine Coolant Thermostat Thermostat-180 Degrees
MOTORAD
Tap to view 3 more
Motorad 655-180 Engine Coolant Thermostat Thermostat-180 Degrees

$14.49

Limited availability at this price!

In Stock

Get as soon as Wednesday, Oct 7
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

MOTORAD 655-180 Part Description

Manufacturer

MOTORAD

Product Description

Thermostat-180 Degrees

Features & Benefits

  • High grade stainless steel and copper construction
  • Meets or exceeds OEM standards
  • Consistent and precise response to cooling system needs
  • Original equipment design for worry-free direct fit replacement
  • 100% tested and calibrated

MOTORAD 655-180 Specifications

Product Attributes

Bypass Diameter 1.38 in
Bypass Length 1.58 in
Sealing Flange Outside Diameter 2.39 IN
Height Between Flanges 1.65 IN
Type Estándar
Height 2.36 IN
Gasket Or Seal Included No
Gasket Quantity 0
Jiggle Pin Weep Hole Yes
Start to Open Temperature 180.0 FA
Installation Tool Included No
Flange Thickness 0.05 in
Depth 1.54 IN
Seal Material N/A
Electric No
Bypass Flange Length 1.58 IN
Bypass Flange Diameter 1.38 IN
Seal Quantity 0
Engine Coolant Thermostat Quantity 1
Jiggle Pin Check Valve Quantity 1
Flange Height 0.06 IN
Includes Jiggle Pin Check Valve Yes
Outlet Inside Diameter 37.084 mm
Outlet Outside Diameter 1.72 in
Valve Outside Diameter 0.80 in
Material Copper
Gasket or Seal Pre-Installed No
MAP Controlled No
Design OEM
Color Brass
Gasket Or Seal Required Yes
Bolt Hole Quantity 0
Grade Type OEM
Sealing Flange Outside Diameter 60.71 MM
Height Between Flanges 41.91 MM
Height 59.94 MM
Start to Open Temperature 82.22 CE
Flange Thickness 1.27 MM
Depth 39.12 MM
9812 40.13 MM
Bypass Flange Diameter 35.05 MM
Flange Height 1.52 MM

Additional Information

Harmonized Tariff Code (Schedule B) 9032100090
Warranty Time UOM MO
Warranty Time 12
Country of Origin (Primary) IL
Harmonized Tariff Code (HTS) 9032100090
UPC 00055644655802

MOTORAD 655-180 Cross References

BrandPart Number
Balkamp458180
CST65580
Carquest Premium Caps and Stats49228
Duralast65580
FVP Caps & Thermostats655-180
Federated655-180
FordBR3Z8575A, BR3Z8575D, DS7Z8575A, DS7Z8575B, BR3Z8575G
GATES34227
Mighty Distributing System65580
Motorad655-180
MotorcraftRT1208, RT1225, RT1226
Murray Temperature Control65580
N/ADS7Z8575C
OMNIPARTS655-180
Parts Master56558
Parts PlusP65580
Pep Boys655-180
Pronto655-180
REACH COOLINGT410236
Stant49228
Worldparts9655180

MOTORAD 655-180 Fits Vehicles

  • Ford Bronco (2021-2023)
  • Ford C-Max (2013-2018)
  • Ford Edge (2015-2023)
  • Ford Escape (2020-2024)
  • Ford Expedition (2015-2022)
  • Ford Explorer (2020-2025)
  • Ford F-150 (2011-2023)
  • Ford F-350 (1994)
  • Ford Fusion (2013-2020)
  • Ford Lobo (2011-2015)
  • Ford Maverick (2022-2025)
  • Ford Mustang (2011-2024)
  • Ford Police Interceptor Utility (2020-2023)
  • Ford Police Responder Hybrid (2019-2020)
  • Ford SSV Plug-In Hybrid (2019-2020)
  • Ford Transit (2015)
  • Ford Transit-150 (2015-2023)
  • Ford Transit-250 (2015-2023)
  • Ford Transit-350 (2015-2023)
  • Ford Transit-350 HD (2015-2023)
  • Lincoln Aviator (2020-2025)
  • Lincoln Continental (2017-2020)
  • Lincoln Corsair (2021-2024)
  • Lincoln MKX (2016-2018)
  • Lincoln MKZ (2013-2020)
  • Lincoln Nautilus (2019-2023)
  • Lincoln Navigator (2015-2022)
