(888) 312-8812 Login SignupRAYBESTOS 681953FZN Raybestos Element3 Coated Brake Rotor
$9149
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
RAYBESTOS 681953FZN Part Description
Manufacturer
Product Description

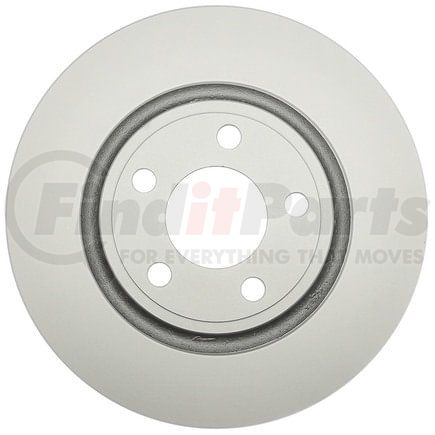

Raybestos Element3 Coated Brake Rotor
Application Summary
2020-2015 Ford Mustang Front
RAYBESTOS 681953FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.047 IN |
| Inside Diameter | 204.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.622 IN |
| Mounting Bolt Hole Diameter | 15.8 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.604 IN |
| Outside Diameter | 320.15 MM |
| Overall Height | 2.441 IN |
| Overall Height | 62 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213236651 |
RAYBESTOS 681953FZN Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | FR3Z1125C, GR3Z1125G, GR3Z1125K |
| BrakeBest | 621777RGS, 681953, 681953PER, 681953R |
| Centric Parts | 120.61109, 120.61112, 121.61112, 125.61109CRY, 126.61112CSL, 126.61112CSR, 126.61112SL, 126.61112SR, 127.61112L, 127.61112R, 128.61112CL, 128.61112CR, 128.61112L, 128.61112R, 320.61112 |
| AutoZone | 75024, 75024DG, 75024DL |
| Advance Auto Parts | YH524203P |
| Dura Corp | BR901378 |
| Newtek Automotive USA | R1378 |
| Wagner Brake | BD180695E, BD180696E |
| Dynamic Friction Company | 604-54077 |
| DuraGo | BR901378 |
| Qualis | 42315 |
RAYBESTOS 681953FZN Fits Vehicles
- Ford Mustang (2015-2020)
RAYBESTOS 681953FZN Cross References
We have 28 alternatives for the 681953FZN by RAYBESTOS:
- FORD FR3Z1125C
- FORD GR3Z1125G
- FORD GR3Z1125K
- ADVANCE AUTO PARTS YH524203P
- AUTOZONE 75024
- AUTOZONE 75024DG
- AUTOZONE 75024DL
- BRAKEBEST 621777RGS
- BRAKEBEST 681953
- BRAKEBEST 681953PER
- BRAKEBEST 681953R
- CENTRIC 120.61109
- CENTRIC 120.61112
- CENTRIC 121.61112
- CENTRIC 125.61109CRY
- CENTRIC 126.61112CSL
- CENTRIC 126.61112CSR
- CENTRIC 126.61112SL
- CENTRIC 126.61112SR
- CENTRIC 127.61112L
- CENTRIC 127.61112R
- CENTRIC 128.61112CL
- CENTRIC 128.61112CR
- CENTRIC 128.61112L
- CENTRIC 128.61112R
- CENTRIC 320.61112
- DURA CORP BR901378
- NEWTEK AUTOMOTIVE R1378
