(888) 312-8812 Login SignupREACH COOLING 42-10639 MACK PETE 385 W-CUMMINS 2003-2006
Tap to view 1 more
$3,21399
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
REACH COOLING 42-10639 Part Description
Manufacturer
Product Description
MACK PETE 385 W-CUMMINS 2003-2006
Application Summary
MACK PETE 385 W-CUMMINS 2003-2006
Features & Benefits
- Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
- Folded fin edges increase stability and heat disbursement properties.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
- Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
- Our fin edges are folded for increased stability and heat disbursement properties.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
MACK PETE 385 W/CUMMINS 2003-2006 W/ FRAME Compare
| Make | Mack, Peterbilt |
| Model | 385 |

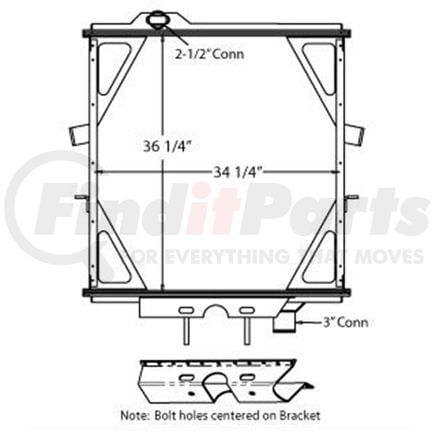

REACH COOLING 42-10639 Specifications
Product Attributes
| Core Height | 36.25 IN |
| Inlet Diameter | 2 1/2 IN |
| Outlet Diameter | 3 IN |
| Core Width | 34.25 IN |
| Core Row Quantity | 3 |
| Tank Material | Brass |
| Core Thickness | 1 9/16 IN |
| Core Material | Copper |
| Core Thickness | 39.7 MM |
| Outlet Location | Bottom Right |
| Inlet Location | Top Left |
| Down Flow Or Cross Flow Type | Down Flow |
| Core Width | 869.95 MM |
| Frame Included | No |
| Core Height | 920.75 MM |
| Core Thickness | 39.674 MM |
| Outlet Diameter | 76.2 MM |
| Core Width | 870 MM |
| Outlet Diameter | 76 MM |
| Engine Oil Cooler Included | No |
| Core Height | 921 MM |
| Transmission Oil Cooler Included | No |
| Inlet Diameter | 63.5 mm |
| Inlet Diameter | 63.5 MM |
| Radiator Cap Included | No |
Additional Information
| Country of Origin (Primary) | CN |
| Warranty Special | 12 Months |
| UPC | 06941099907297 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 42-10639 Part Interchanges
| Brand | Part Number |
|---|---|
| Northern Factory Sales | 239075 |
| Northern Radiator | SCSI239075 |
| OEM | 0706657A075, 1A19325, RADPE104, TR9075 |
| Peterbilt | 07-06657A074, 0706657A046, 0706657A074, AFX000536, AFX-000508, AFX000508, AFX-000536 |
| Active Radiator Supply Company | 770035, 770035BT |
| Affton Radiator | AFX-000536 |
| NAPA | NR4210639 |
| 1-800-Radiator | 2401026 |
| Paccar Parts | RAD42-10639TRP |
REACH COOLING 42-10639 Fits Vehicles
- Peterbilt 387 (2006-2007)
- Peterbilt 377 (1995-2000)
- Peterbilt 385 (1996-2007)
- Peterbilt 379 (1993, 1995-2007)
- Peterbilt 378 (1995-2007)
- Peterbilt 357 (1995-2007)
REACH COOLING 42-10639 Cross References
We have 14 alternatives for the 42-10639 by REACH COOLING:
REACH COOLING 42-10639 Manufacturer Information
Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
