OSC HD9264 Part Description
Manufacturer
Product Description

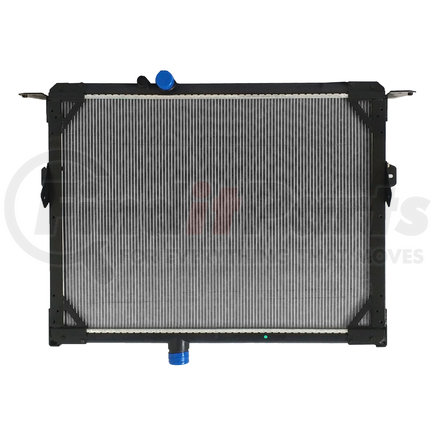

OSC Automotive Products HD9264 Heavy-Duty Radiator
Application Summary
1996-2005 MACK CH SERIES
Features & Benefits
- Designed with drop-in fit, form, and function. Radiators undergo State of the Art testing during production including: Cycle, Vibration, Burst and Environment. Innovative design that and improve the life of high mileage vehicles.
| MAKE | MACK |
| YEAR | 1996-2005 |
| MODEL/APPLICATION | CH SERIES |
| CORE HEIGHT | 28-15/16 |
| CORE WIDTH W/O SIDE RAILS | 38-1/2 |
| CORE THICKNESS | 2-1/4 |
| CORE HEIGHT | 735 |
| CORE WIDTH W/O SIDE RAILS | 978 |
| CORE THICKNESS | 56 |
| INLET HEADER | 3-3/16 x 40-1/4 |
| OUTLET HEADER | 3-3/16 x 40-1/4 |
| INLET CONNECTION | 51 |
| OUTLET CONNECTION | 64 |
| INLET CONNECTION | 2" |
| OUTLET CONNECTION | 2-1/2" |
| CONSTRUCTION | PA/56MM/MT |
| HEADER STYLE | CSX4 |
| TOC SPECIFICATIONS | NO |
| EOC SPECIFICATIONS | NO |
| KIT NOTES | NO KIT REQUIRED |
| Box Height (mm) | 1370 |
| Box Width (mm) | 300 |
| Box Length (mm) | 1075 |
| Box Size (cu m) | 0.442 |
| Net Weight (kg) | 27.35 |
| Gross Weight (kg) | 34.42 |
OSC HD9264 Specifications
Product Attributes
| Core Height | 28-15/16 IN |
| Core Width | 38-1/2 IN |
| Core Thickness | 2-1/4 IN |
| Core Height | 735 MM |
| Core Width | 978 MM |
| Core Thickness | 56 MM |
| Inlet Header Width | 3-3/16 IN |
| Inlet Header Length | 40-1/4 IN |
| Outlet Header Width | 3-3/16 IN |
| Outlet Header Length | 40-1/4 IN |
| Inlet Diameter | 2" IN |
| Outlet Diameter | 2-1/2" IN |
| Core Material | PLASTIC ALUMINUM |
| Header Style | CSX4 |
| ASIN | B01MTAUMI4 |
| BulletPoint 1 | All Weather SV3 Fluid : By pressurizing the oil, engineers can eliminate the negative effects of cavitation; The result is better more consistent control and superior ride quality |
| BulletPoint 2 | Twin Tube Design: Eliminates oil starvation at high speed and greatly reduces heat and pressure build up; The benefit is smooth and rapid recovery from impacts to the vehicles suspension system |
| BulletPoint 3 | Nitrogen Gas Charged: Reduces aeration offering a greater range of control over a wider variety of road conditions as compared to non-gas units |
| BulletPoint 4 | Hardened Chrome Plated Pistons and Teflon Banded Piston Seal |
| BulletPoint 5 | Brackets and Mounting match OE |
Additional Information
| Country of Origin (Primary) | CN |
| Original Supplier | OSC |
| Original Supplier Part Number | HD9264 |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| UPC | 00845804092895 |
OSC HD9264 Cross References
OSC HD9264 Customer Reviews
No reviews yet
Be the first to review this product!
OSC HD9264 Manufacturer Information
OSC® produces enhanced and specialized units to help keep trucks and other large vehicles on the road longer. Some vehicles will be on the road for up to 500,000 miles, so it is critical that they are equipped with high-quality automotive parts that are also up for the journey. OSC Automotive particularly specializes in the manufacture of condensers, heaters, and radiators. The company operates in two main U.S. locations: a west coast location in Fullerton, CA and an east coast location in Duluth, GA. All of its products are produced with the goal to meet or surpass OE-quality standards.
