OSC part description

APPLICATION 80-88SUPREME 80-87REGAL/MCARLO 80-86CAP/IMPALA
POP CODE B

Product Description

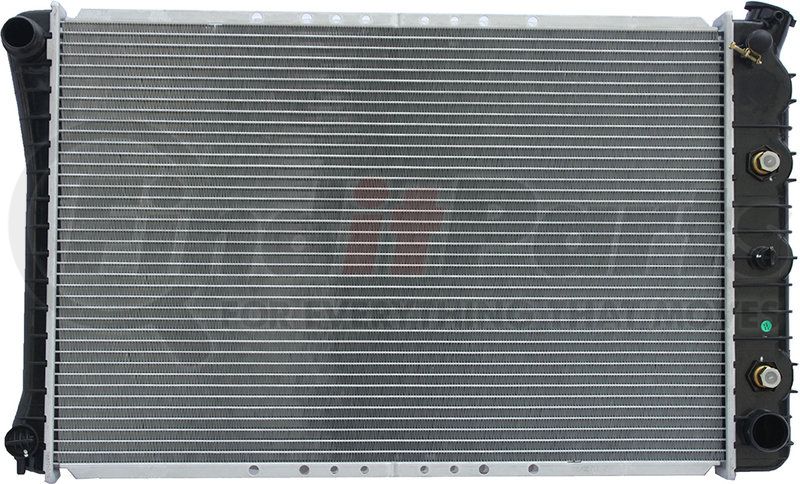

OSC Cooling Products 162 New Radiator

Application Summary

80-88SUPREME 80-87REGAL/MCARLO 80-86CAP/IMPALA

Features & Benefits

  • Made from premium grade aluminum.The tubes are cadmium plated inside and out to prevent premature failure. Each radiator is individually pressure tested and engineered for multi-fit without compromising the look and fit.

Product Attributes

Core Height 26 3/8 IN
Core Width 17 1/4 IN
Core Thickness 1 1/4 IN
Core Thickness 32 MM
Inlet Header Width 2 7/16 IN
Inlet Header Length 18 3/4 IN
Outlet Header Width 2 7/16 IN
Outlet Header Length 18 3/4 IN
Inlet Diameter 1 5/16 - 1 9/16 IN
Outlet Diameter 1 9/16 IN
Down Flow Or Cross Flow Type CROSSFLOW
Transmission Oil Cooler Included YES
Core Material ALUMINUM
Core Row Quantity PA 1 Row equivalent to 3 row
Tank Material PLASTIC
Transmission Oil Cooler Distance between Fittings 8 1/2 IN
Transmission Oil Cooler Diameter 1 1/4 IN
Engine Oil Cooler Included NO
ASIN B001KRF2BO
BulletPoint 1 Hassle free installation
BulletPoint 2 O.E. performance and exceptional quality
BulletPoint 3 Engineering enhancements provide improved cooling and longer life cycle
BulletPoint 4 Components are fitted and torqued in place to factory specifications
BulletPoint 5 Premium grade tubes, fins, headers, tanks, and other components are used to make OSC radiators more durable.
BulletPoint 6 Drop in fit, form and function. All necessary fittings or hardware are included in each unit for an easy install.
BulletPoint 7 Complete Radiators 100% tested up to three times during production: OSC tests the transmission and engine oil coolers prior to installation into the tank. The radiator core is tested prior to assembly and then once the assembly is complete the unit is tested again.
BulletPoint 8 Enhancements added to solve original design failures and to improve the life of high mileage vehicles: adding more fins per inch, thicker cores and even larger transmission coolers to overcome the added heat associated with these vehicles.

Additional Information

Country of Origin (Primary) CN
Original Supplier OSC
Original Supplier Part Number 162
Harmonized Tariff Code (Schedule B) 8708915000
Warranty Special See Rep
Warranty Special UOM SR
UPC 00812440010132

Part Interchanges

OSC® produces enhanced and specialized units to help keep trucks and other large vehicles on the road longer. Some vehicles will be on the road for up to 500,000 miles, so it is critical that they are equipped with high-quality automotive parts that are also up for the journey. OSC Automotive particularly specializes in the manufacture of condensers, heaters, and radiators. The company operates in two main U.S. locations: a west coast location in Fullerton, CA and an east coast location in Duluth, GA. All of its products are produced with the goal to meet or surpass OE-quality standards.
