OSC part description

APPLICATION 04-04 EXPRESS SAVANA 4.8/6.0L W/QUICK DISCONNECT RAD PT/AC
POP CODE A

Product Description

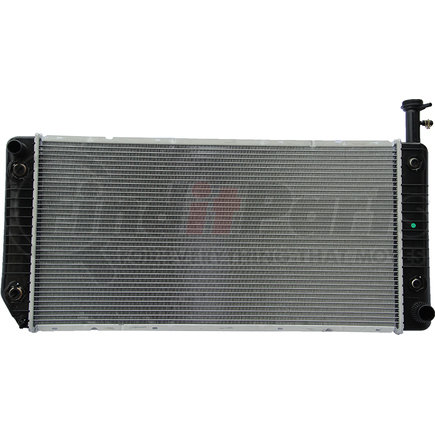

OSC Cooling Products 2791 New Radiator

Application Summary

04-04 EXPRESS SAVANA 4.8/6.0L W/QUICK DISCONNECT RAD PT/AC

Features & Benefits

  • Made from premium grade aluminum.The tubes are cadmium plated inside and out to prevent premature failure. Each radiator is individually pressure tested and engineered for multi-fit without compromising the look and fit.

Product Attributes

Core Height 34 IN
Core Width 17 1/4 IN
Core Thickness 1 IN
Core Thickness 26 MM
Inlet Header Width 3 1/8 IN
Inlet Header Length 18 1/2 IN
Outlet Header Width 3 1/8 IN
Outlet Header Length 18 1/2 IN
Inlet Diameter 1 5/16 IN
Outlet Diameter 1 9/16 IN
Down Flow Or Cross Flow Type CROSSFLOW
Transmission Oil Cooler Included YES
Core Material ALUMINUM
Core Row Quantity 1
Tank Material PLASTIC
Transmission Oil Cooler Distance between Fittings 11 1/2 IN
Transmission Oil Cooler Plate Quantity 7
Engine Oil Cooler Included YES
Oil Cooler Fittings Distance Apart 11 1/2 IN
Engine Oil Cooler Type PLATE
Engine Oil Cooler Number of Plates 5 PLATES
ASIN B009497M9A
BulletPoint 1 Hassle free installation
BulletPoint 2 O.E. performance and exceptional quality
BulletPoint 3 Engineering enhancements provide improved cooling and longer life cycle
BulletPoint 4 Components are fitted and torqued in place to factory specifications
BulletPoint 5 Premium grade tubes, fins, headers, tanks, and other components are used to make OSC radiators more durable.
BulletPoint 6 Drop in fit, form and function. All necessary fittings or hardware are included in each unit for an easy install.
BulletPoint 7 Complete Radiators 100% tested up to three times during production: OSC tests the transmission and engine oil coolers prior to installation into the tank. The radiator core is tested prior to assembly and then once the assembly is complete the unit is tested again.
BulletPoint 8 Enhancements added to solve original design failures and to improve the life of high mileage vehicles: adding more fins per inch, thicker cores and even larger transmission coolers to overcome the added heat associated with these vehicles.

Additional Information

Country of Origin (Primary) CN
Original Supplier OSC
Original Supplier Part Number 2791
Harmonized Tariff Code (Schedule B) 8708915000
Warranty Special See Rep
Warranty Special UOM SR
UPC 00845804065899

Part Interchanges

OSC® produces enhanced and specialized units to help keep trucks and other large vehicles on the road longer. Some vehicles will be on the road for up to 500,000 miles, so it is critical that they are equipped with high-quality automotive parts that are also up for the journey. OSC Automotive particularly specializes in the manufacture of condensers, heaters, and radiators. The company operates in two main U.S. locations: a west coast location in Fullerton, CA and an east coast location in Duluth, GA. All of its products are produced with the goal to meet or surpass OE-quality standards.
