DELPHI TC387 Part Description
Manufacturer
Product Description

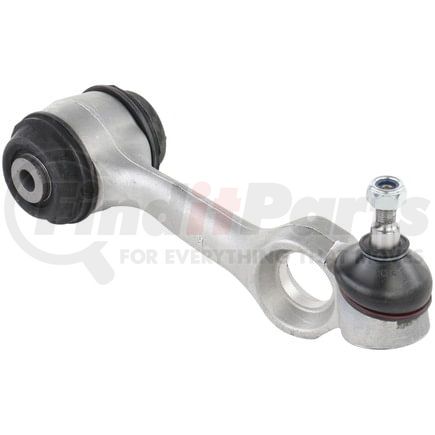

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC387 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Grease Fitting Included | No |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 80.00 MM |
| Control Arm Maximum Width | 3.150 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 10.00 MM |
| Ball Joint Stud Length | 57.50 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 10.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.394 IN |
| Ball Joint Stud Length | 2.264 IN |
| Thread Diameter | 0.394 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604272480 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC387 Cross References
DELPHI TC387 Fits Vehicles
- Mercedes-Benz 560SEL (1986-1991)
- Mercedes-Benz 560SEC (1986-1991)
- Mercedes-Benz 500SEL (1984-1985)
- Mercedes-Benz 500SEC (1984-1985)
- Mercedes-Benz 420SEL (1986-1991)
- Mercedes-Benz 380SEC (1982-1983)
- Mercedes-Benz 380SEL (1981-1983)
- Mercedes-Benz 380SE (1984-1985)
- Mercedes-Benz 350SDL (1990-1991)
- Mercedes-Benz 350SD (1991)
- Mercedes-Benz 300SDL (1986-1987)
- Mercedes-Benz 300SE (1988-1991)
- Mercedes-Benz 300SEL (1988-1991)
- Mercedes-Benz 300SD (1981-1985)
