(888) 312-8812 Login SignupDELPHI TC292 Ball Joint
Tap to view 2 more
MSRP: $48.88
$3499
Save $13.89
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC292 Part Description
Manufacturer
Product Description

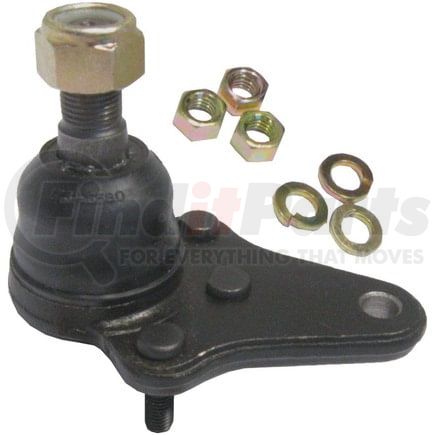

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC292 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.378 IN |
| Maximum Outside Diameter | 35.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 127 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | Yes |
| Height | 4.094 IN |
| Height | 105.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length | 1.024 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.496 IN |
| Mounting Bolt Head Diameter | 12.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 15.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.699 IN |
| Stud Tapered End 2 Diameter | 17.75 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Thread Pitch | 1.5 MM |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Length | 26.01 MM |
| Mounting Bolt Shank Diameter | 0.310 IN |
| Mounting Bolt Thread Length | 0.590 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604274064 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC292 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-2210 |
| CORTECO | 49395652 |
| DORMAN | B9047, B9047PR |
| Import Direct | BJ07024 |
| MAS Industries | B9047 |
| MOOG Chassis Products | K9047 |
| Mevotech | MK9047 |
| N/A | GK9047, 4333039045, B9047PR, 4334039075 |
| TRW | JBJ329 |
| Toyota | 43330-29056, 43330-29066 |
DELPHI TC292 Fits Vehicles
- Toyota Hi-Lux (1972-1974)
- Toyota Pickup (1972-1983)
DELPHI TC292 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC292 Questions & Answers
No questions yet
Be the first to ask a question about this product!
