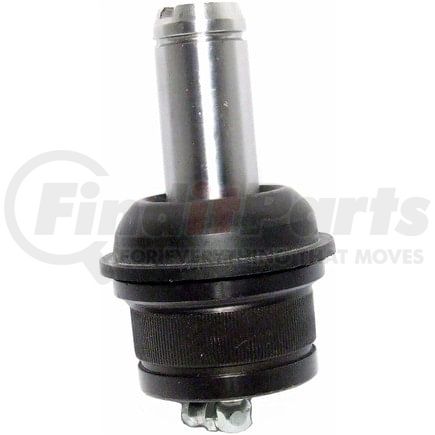

DELPHI TC1695 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1695 Specifications
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Gray |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 48 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 2.953 IN |
| Mounting Bolt Length | 75.00 MM |
| Washers Included | Yes |
| Height | 3.780 IN |
| Nuts Included | No |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 96 MM |
| Wrench Size | 19mm |
| Stud Type | Non-Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.75 MM |
| Mounting Bolt Thread Length | 32.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Length | 96.00 MM |
| Length | 3.780 IN |
| Height | 96.01 MM |
| Stud Thread Length | 3.78 IN |
| Mounting Bolt Shank Diameter | 0.470 IN |
| Mounting Bolt Thread Length | 1.260 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275795 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1695 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | B8546, B8546PR |
| Ford | F0TZ3049B, FOTZ 3049-B |
| MAS Industries | B8546 |
| MOOG Chassis Products | K8546, K8676 |
| Mazda | ZZL0-33-051, ZZLO-33-051 |
| Mevotech | MK8546 |
| N/A | GK8546, B8546PR, 536520, MK8676 |
| TRW | JBJ975 |
DELPHI TC1695 Fits Vehicles
- Mazda Navajo (1991-1993)
- Ford Ranger (1990)
- Ford Explorer (1991-1993)
- Ford Bronco II (1990)
